Maintenance
CUTTING UNIT
Adjusting the height of the cutting knives
(ROLLANT 250/254/255 RC)
Attention!
Adjust the cutting knife backstop (tube) so
that the cutting knives project 5 to 10 mm
(0.20 to 0.39 inch) (X) from the base.
Danger!
Whenever working with the tailgate open and
in the baling chamber, secure the tailgate
with the safety lock.
Risk of injury when working in the cutting unit!
Wear gloves!

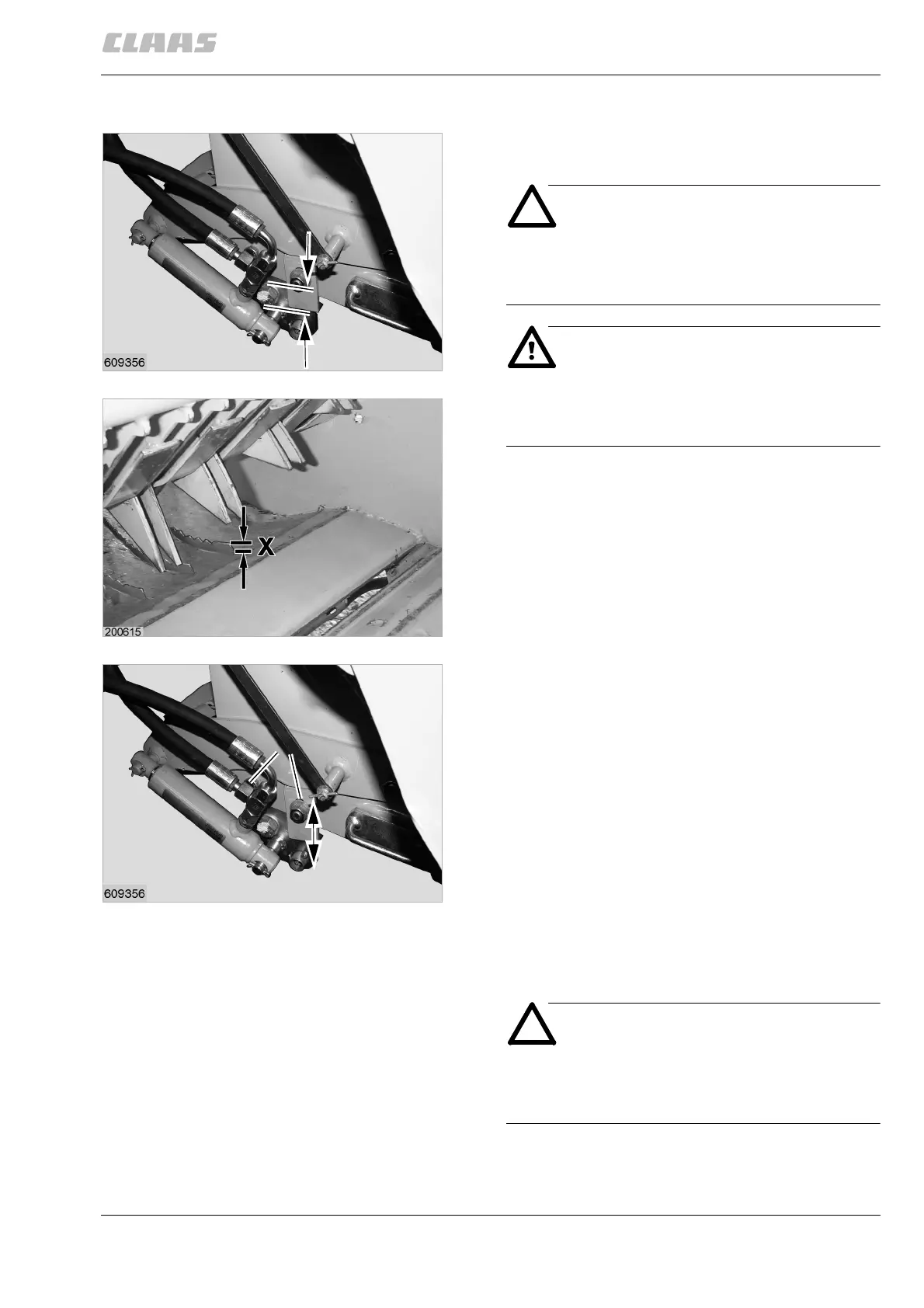

(Fig. 1, 2)
ROLLANT 254/255 - from 75400181/74802194
The height of the cutting unit can be adjusted. Doing
this makes the blades protrude to a greater or lesser
extent above the cutting floor.
– Lower position (L): If the blades are not being
used for crop cutting the blades protrude 4.2 mm
(0.17 inch) (X) above the cutting floor. If the blades
are being used for crop cutting the distance
between the tops of the blades and the rotor tube
is 37 mm (1.5 inch).
– Higher position (H): If the blades are not being
used for crop cutting the blades protrude 22.3 mm
(0.88 inch) (X) above the cutting floor. If the blades
are being used for crop cutting the distance
between the tops of the blades and the rotor tube
is 19.7 mm (0.78 inch).
Attention!
In the higher position (H) the blades always
protrude above the cutting floor (approx.
22.3 mm/0.88 inch)!
1
2
A
H
L
3
Maintenance
