000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 7.2.9
Prior to operation
Attaching to the jaw-type hitch with a counter
nut
(in Germany only permitted with type-approved
drawbar)
Adjusting the drawbar fork arms
The round baler must be hitched horizontally to the
trailer coupling on the tractor. The towing fork with
construction type approval M 9646 forms part of the
basic equipment of the machine.
The length of the arms of the towing fork are screwed
on to the left and right of the machine, in each case
using two mounting screws M20 x 1.5 x 65-10.9 (1),
two nuts and two counter nuts.
Tightening torque (for the nuts) = 486 Nm
(357.4 ft lb)
Tightening torque (for the counter nuts) = 300 Nm
(220.6 ft lb)
Attention!
Secure the baler so that it cannot roll away.
Park the baler on support feet.
Attention!
Tighten up the fastening screws (1) after the
first 10 hours of operation, and then check
they are still fitting tightly after every 50 hours
of operation.

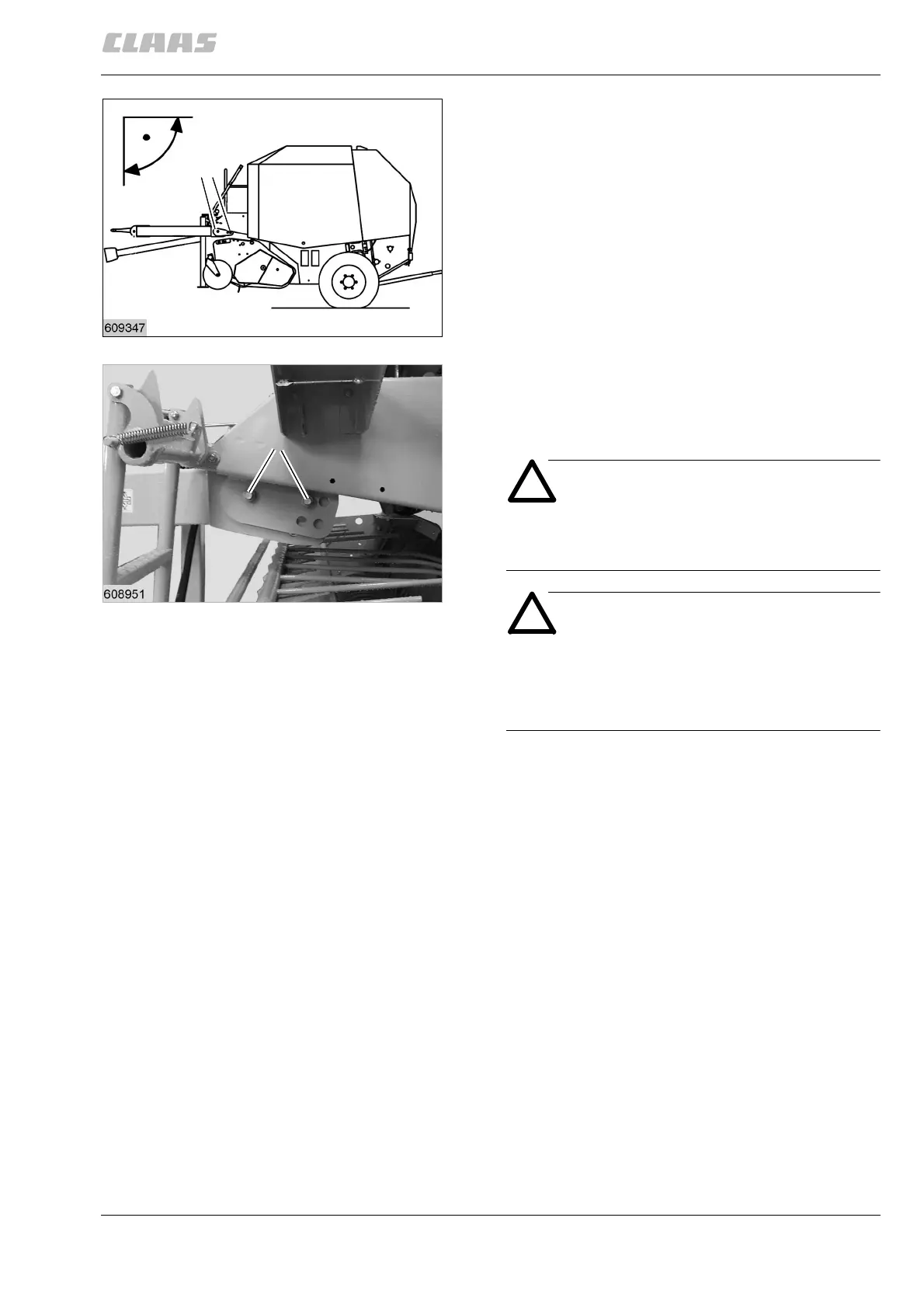

(Fig. 24, 25)
1
24
1
25
