000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 14.3.7
Maintenance

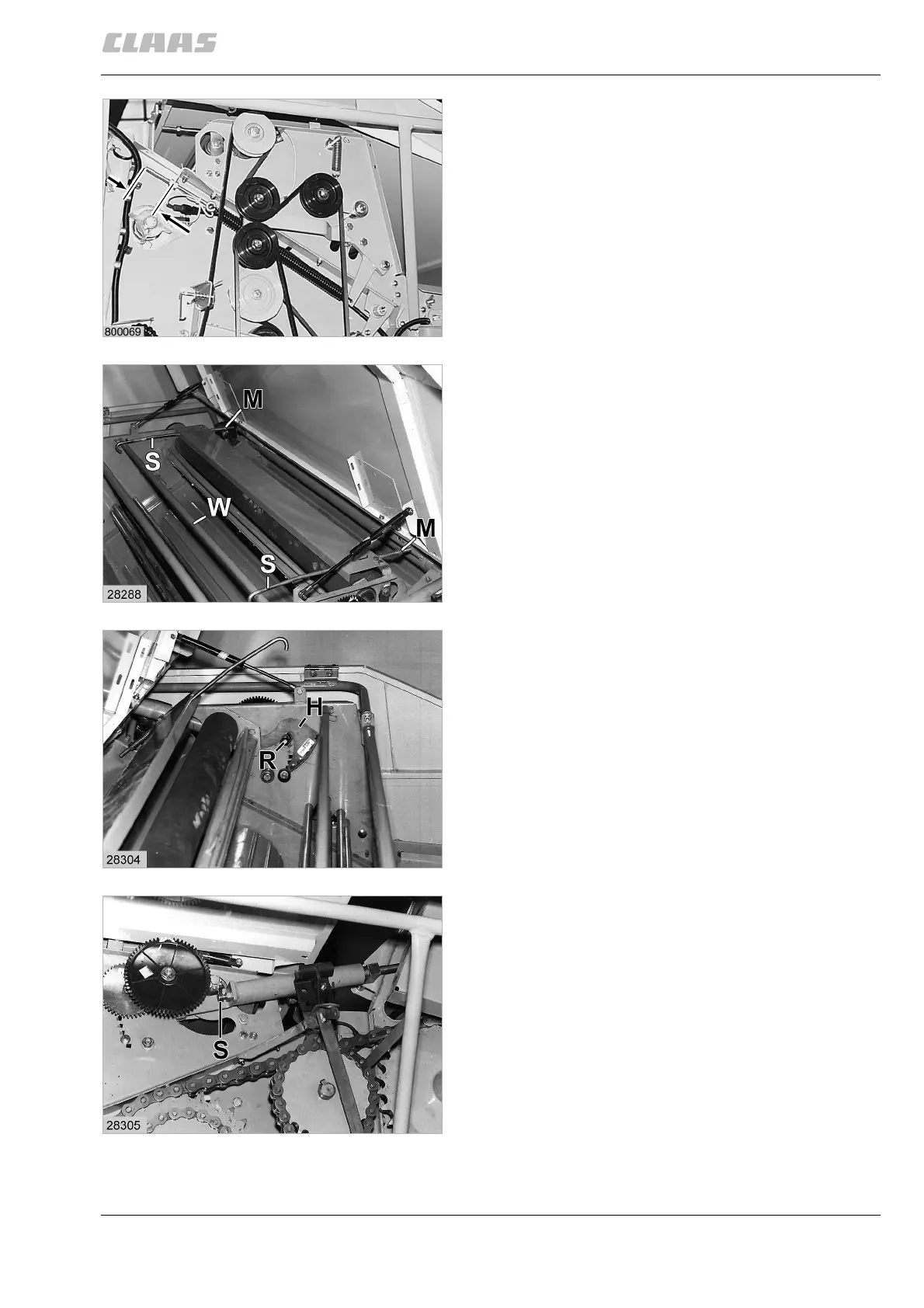

Adjusting the tension spring for the net brake
Adjust the eyebolt until the distance (X) between the
bracket and the end of the eyebolt is approx. 70 mm
(2.76 inch).
(Fig. 19)
Adjusting the pressure springs for the pressure
roller
In order to adjust the springs, fit the tightening arms
(S) in position on shaft (W), but do not tighten them.
Turn the nuts (M) until the springs are 60 mm
(2.36 inch) long.
(Fig. 20)
Adjusting the tightening device for the net knife
Open the tailgate completely.
Adjust the hex bolt (S) of the spring-loaded cylinder so
that the knife trip quadrant (H) drops readily behind the
metering spindle (R) with a clearance of at least 5 mm
(0.20 inch).
(Fig. 21, 22)
X
19
20
21
22
