000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 7.2.3
Prior to operation

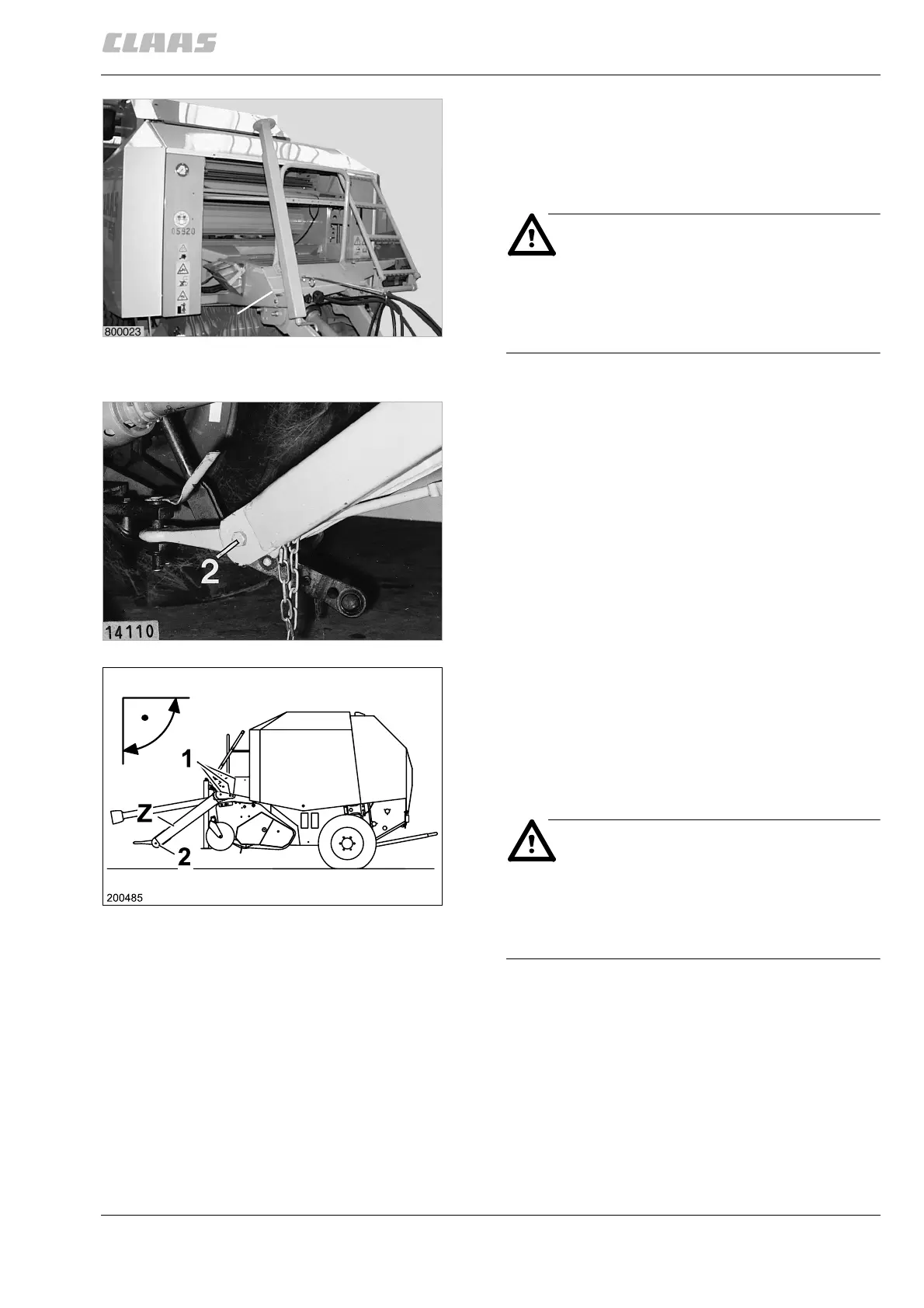

Loosen bolt (B), pull it out and then pull the support out
forwards. Rotate the parking jack upwards by 180° and
push back in. Reinsert the bolt (B) and secure with a
W-clip.
(Fig. 6, 7)
Danger!
The work of converting the height of the
drawbar hitching (e.g. changing from top to
bottom hitching or vice versa) must only be
done by authorized workshops.
Attaching to the swinging drawbar with a
safety nut
The round baler must be connected horizontally to the
swinging drawbar of the tractor.
The height of the drawbar (Z) can be adjusted by
unscrewing bolts (1 and 2). Once the height of the
drawbar has been adjusted, loosen bolt (2) and adjust
the hitch eye so that it is parallel to the ground.
Tighten bolts (1 and 2) to the torques specified below.
(Fig. 8, 9)
Tightening torques:
Bolt (1)
M 20 x 1.5 x 65 ISO 8676-10.9 = 486 Nm (357.4 ft lb)
Bolt (2)
M 20 x 1.5 x 140 ISO 8676-10.9 = 486 Nm (357.4 ft lb)
Danger!
Retighten bolts (1 and 2) after the first 10
hours of operation; thereafter check the bolts
for tightness after every 50 hours of
operation.
B
7
8
9
