Claas ROLLANT 240 - Spring-Loaded Cylinder for Bale-Forming Roller Drive - Tailgate; Spring-Loaded Cylinder for the Bottom Bale-Forming Roller Drive; Adjusting the Spring-Loaded Cylinder for the Front Bale-Forming Roller Drive

000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 14.3.5
Maintenance
Spring-loaded cylinder for bale-forming roller
drive – tailgate

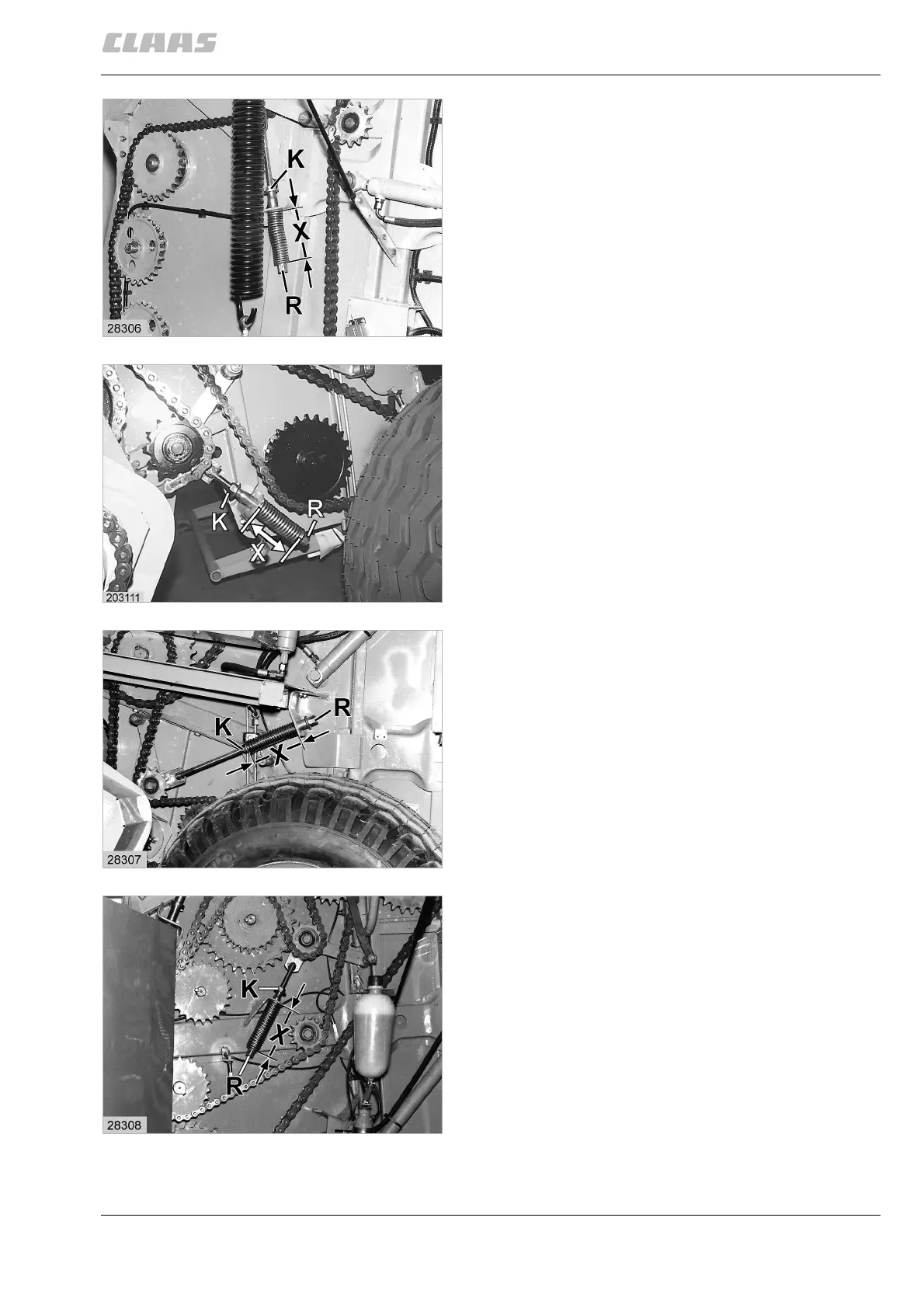

After loosening lock nut (K), adjust the guide tube (R)
so that the length of the loaded spring (X) is 140 mm
(5.51 inch).
Retighten the lock nut (K) after adjustment.
(Fig. 12)
ROTOR MACHINE
REEL MACHINE
Spring-loaded cylinder for the bottom bale-forming
roller drive
After loosening lock nut (K), adjust the guide tube (R)
so that the length of the loaded spring (X) is 140 mm
(5.51 inch) after the lock nut has been tightened.
(Fig. 13, 14)
Adjusting the spring-loaded cylinder for the front
bale-forming roller drive
After loosening lock nut (K), adjust the guide tube (R)
so that the length of the loaded spring (X) is 140 mm
(5.51 inch) after the lock nut has been tightened.
(Fig. 15)
12
13
14
15
