Claas ROLLANT 240 User Manual

000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 8.1.3

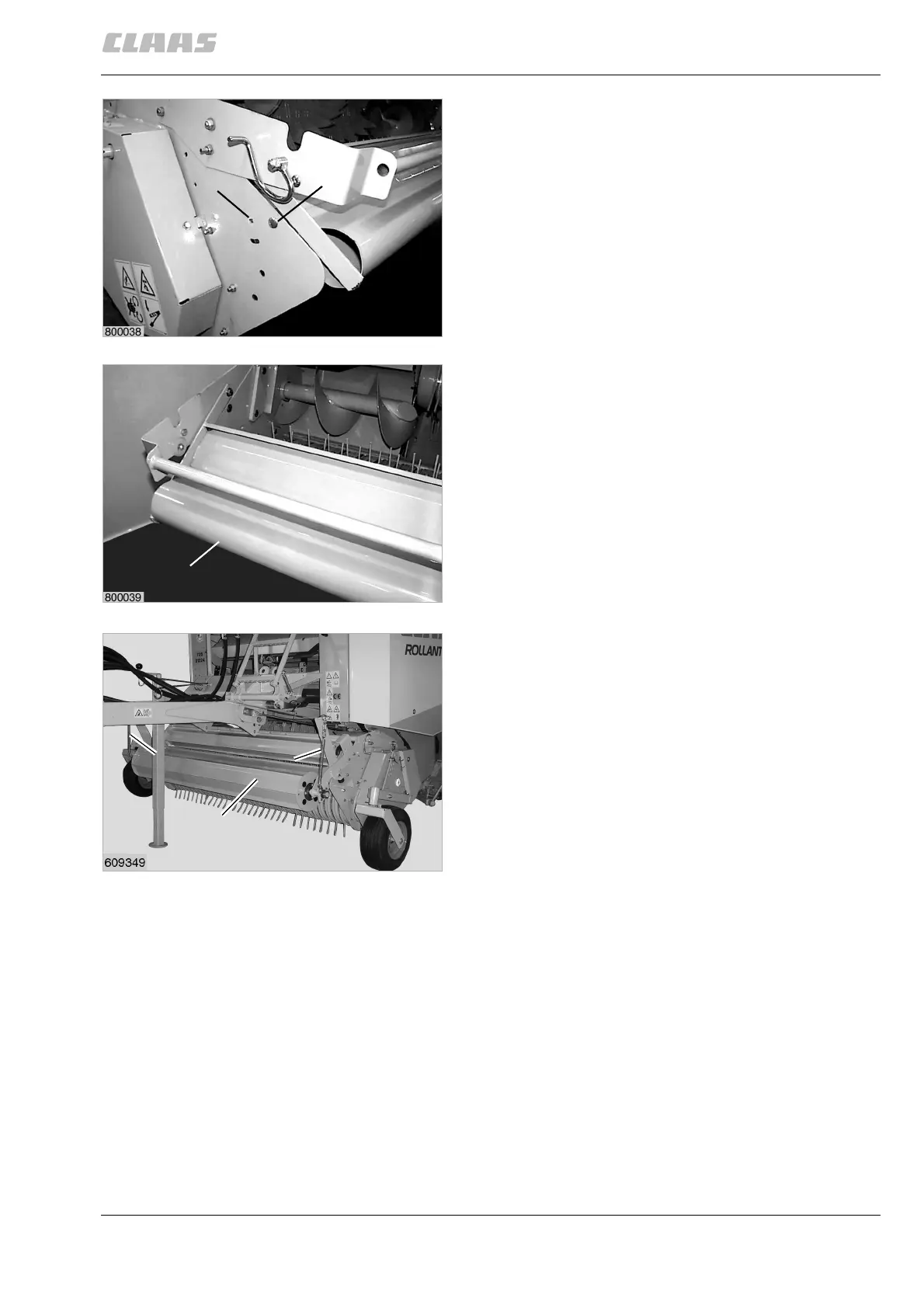

Setting up the baler
Baffle plate at the lowest setting (normal swath) (A):
The height stops on the left and the right are in the
lower position (U) under the baffle. This means that the
swing (B) is bigger.
Baffle plate at the highest setting (bigger swath) (T):
For extremely large swaths the baffle plate can be
locked at the highest setting. Move the rear height
stops at the right and left into the forward position (O).
To do this, lift the baffle plate and position the end
stops.
(Fig.5,6,7)
Roller crop guard
The roller crop guard (A) guarantees an even feed of
the rotor even with unfavourable harvesting conditions,
uneven swaths and short crops.
The roller crop guard is fitted with two springs (C). The
springs (C) work as shock absorbers for the roller crop
guard.
The height of the roller crop guard (A) can be adjusted.
The setting depends on the proportions of the swath.
(Fig. 8)
U
O
6
T
7
A
C
C
8
