HYDRAULIC OIL FILTER
(machine with filter system)

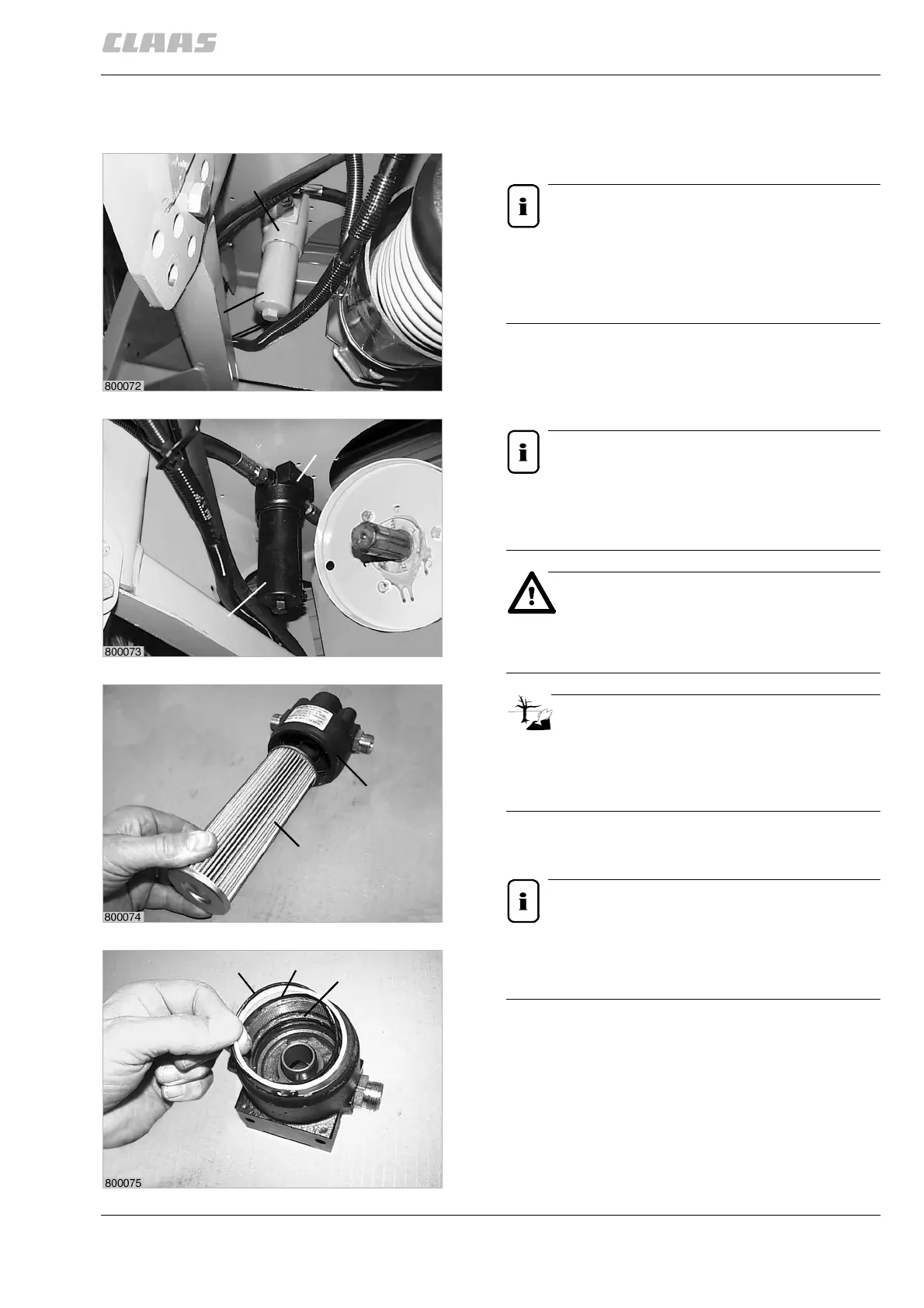

Change the filter insert:
Note!
Figure 1 shows the standard design of the
hydraulic oil filter (A) and figure 2 shows the
hydraulic oil filter (B) on the High Convenience
version.
Note!
Change the filter insert for the first time after 150
hours, and then every 500 hours or once every
year.
Danger!
Remove the pressure from the hydraulic
system before opening the filter enclosure.
Environment!
Collect any leaking hydraulic oil and dispose of it,
together with the used filter insert, in accordance with
regulations.
Screw the bottom section of the housing (C) away from
the top section.
Note!
Figures 3 and 4 are shown with the filter
dismantled in order to provide a better
illustration.
C
A
1
C
B
2
E
D
3
H
F
G
4
