HelixNet | User Guide
14.10.1 Audio Assignment

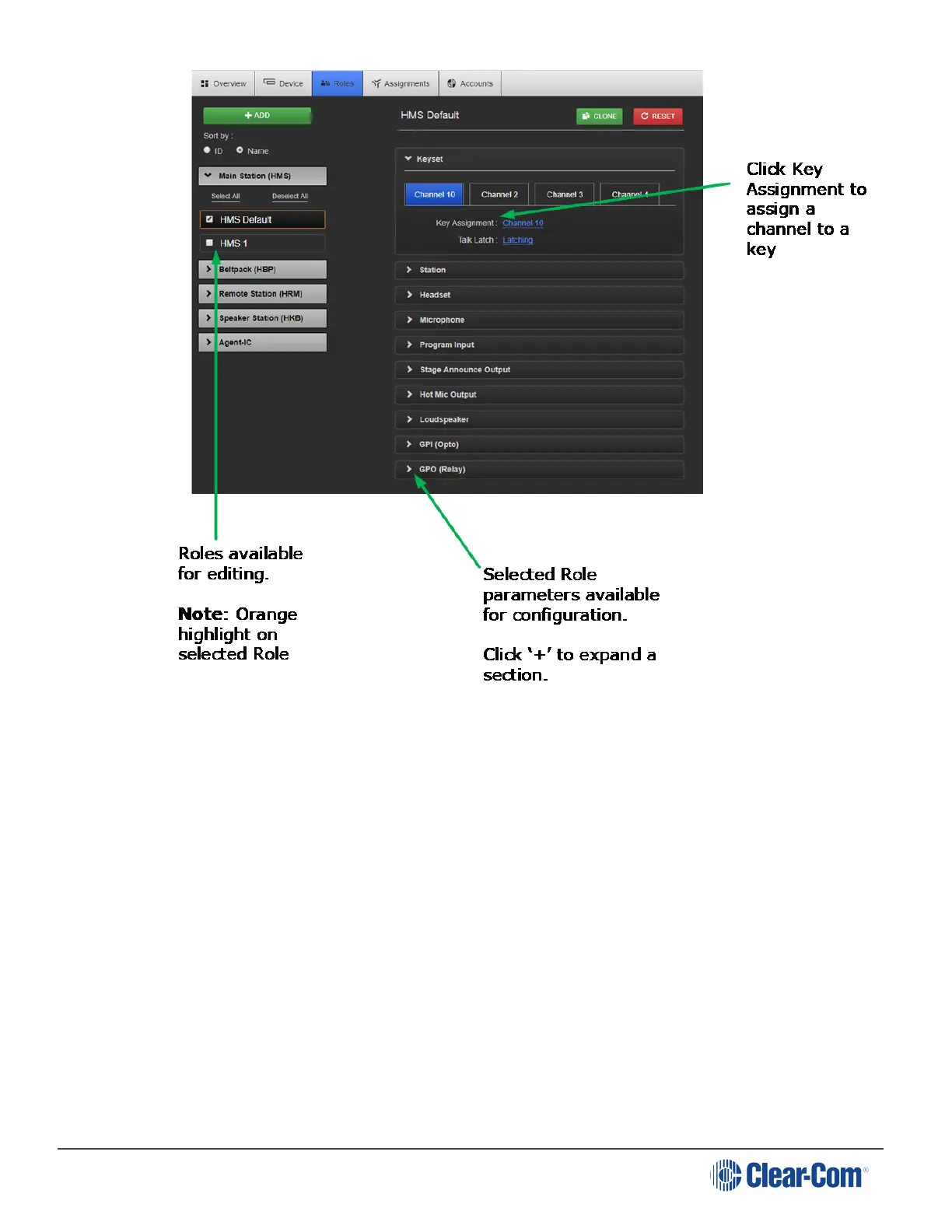

In HelixNet 3.0 or later, audio assignment is achieved in the Roles page. You will assign audio to a
Channel on a Keyset. For a description of a Keyset (available on the front panel of all devices) see
Main Station Remote. A Main Station, a Remote Station and a Speaker Station have 4 Keysets on
each device. Beltpacks have two Keysets on each device (beltpacks can also have many
Channels stacked on one key).
14.11 Assignments Page
The Assignments page has three main functions in HelixNet 4.0. From this page in the CCM you
can:
Change Channel names
See a real-time, visual representation of devices and Roles in use. Any changes to the
configuration are reflected immediately in this page and the working system.
Add or remove Helixnet ports and LQ ports in and out of Helixnet channels.
Page 166
