Interface module Description
network activity.
Warning: Both ports are configured to bridge traffic from
one port to the other in order to work in a daisy-chained
configuration. Spanning Tree Protocol is not enabled on
these ports, therefore do not connect them both to the
same network.

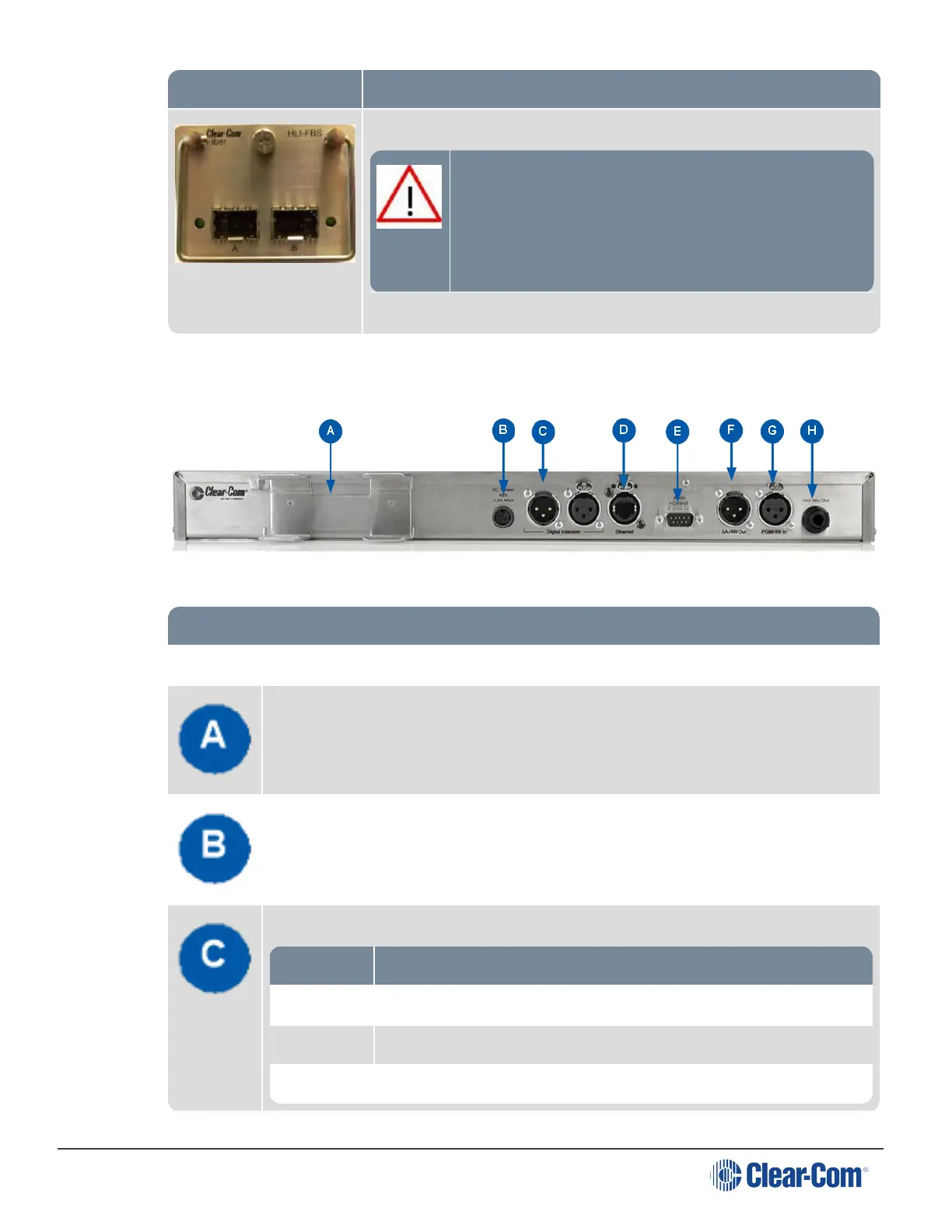

2.4 Remote Station rear panel
Key to Remote Station: rear panel
Feature Description
PSU holder for a separate external AC-DC power supply. The external PSU
provides the 48V required and at its input takes 100-240V, 50-60Hz.
Power supply. The power input connector is a low voltage DC connection. It is
48VDC at a max power of 12.95W.
Line 1 (digital Partyline). (3-pin male and female XLR connectors).
Pin Function
Pin 1 Ground
Pin 2 +30V DC and Audio
Pin 3 -30V DC and Audio
Page 30
