Appendix E Falcon Lead Lag
E-7

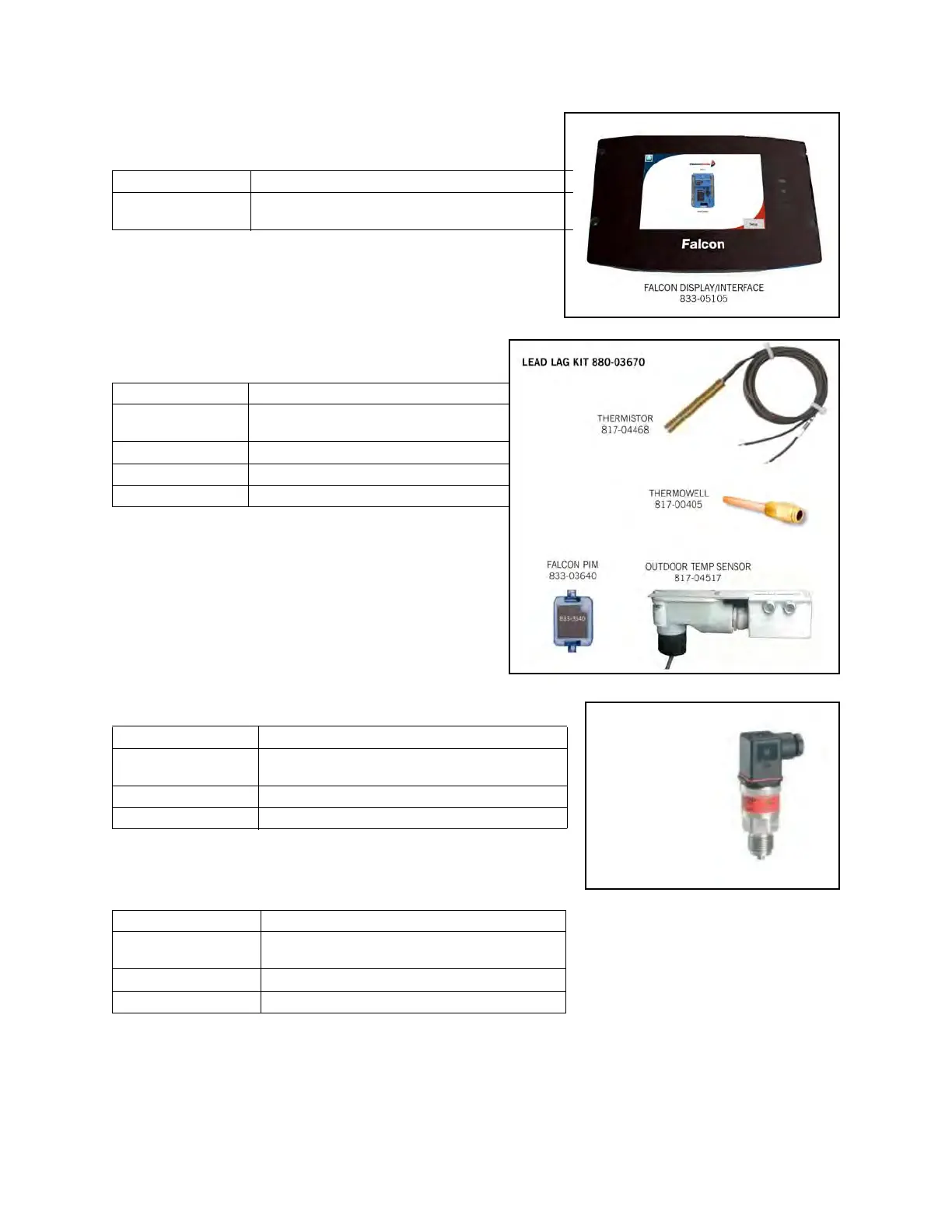

Display
Lead Lag Kits
Hydronic (kit number 880-03670):
15# Steam (kit number 880-3755)
150# Steam (kit number 880-3756)
*1/4” process connection
PART NUMBER DESCRIPTION
833-05105 FALCON SYSTEM DISPLAY / OPERATOR
INTERFACE
PART NUMBER DESCRIPTION
817-04468 TEMPERATURE SENSOR, HEADER
SUPPLY, 10K NTC THERMISTOR
817-00405 THERMOWELL
817-04517 OUTDOOR TEMP. SENSOR
833-03640 FALCON PROGRAM MODULE
PART NUMBER DESCRIPTION
817-04385 PRESSURE TRANSMITTER*, HEADER
SUPPLY, 4-20mA, 2-WIRE, 0-15#
833-03640 FALCON PROGRAM MODULE
854-00011 SIPHON COIL
PART NUMBER DESCRIPTION
817-04386 PRESSURE TRANSMITTER*, HEADER
SUPPLY, 4-20mA, 2-WIRE, 0-150#
833-03640 FALCON PROGRAM MODULE
854-00011 SIPHON COIL
PRESSURE TRANSMITTER
817-04385 15 PSI
817-04386 150 PSI
