Gear Teeth [ - ]
Number of teeth on the engines flywheel for the pick-up. Setpoint (RPM pickup measuring) is ignored when
RPM is received via J1939.
Step: 1
Range: 1 – 500
RPU Gear Teeth [ - ]
Number of teeth on the engines flywheel for the pick-up connected on ID-RPU.
Step: 1
Range: 1 – 500
Nominal RPM [ RPM ]
Nominal engine speed, base for Over-speed protection limit and Engine Values: Speed Request
percentage calculation.
Step: 1 RPM
Range: 30 – 4000 RPM
Hint:
Nominal RPM must correspond to 100% Throttle position in ECU for correct Load sharing function in PRP
application.
Governor Mode [ ISOCH, DROOP, BIN.INPUT ]
Activates/deactivates the logical binary output Droop Sw, that can be configured as J1939 output to switch
ECU mode.
BIN.INPUT: ISOCH/DROOP mode is switched via Binary input BI Droop (DROOP when closed).

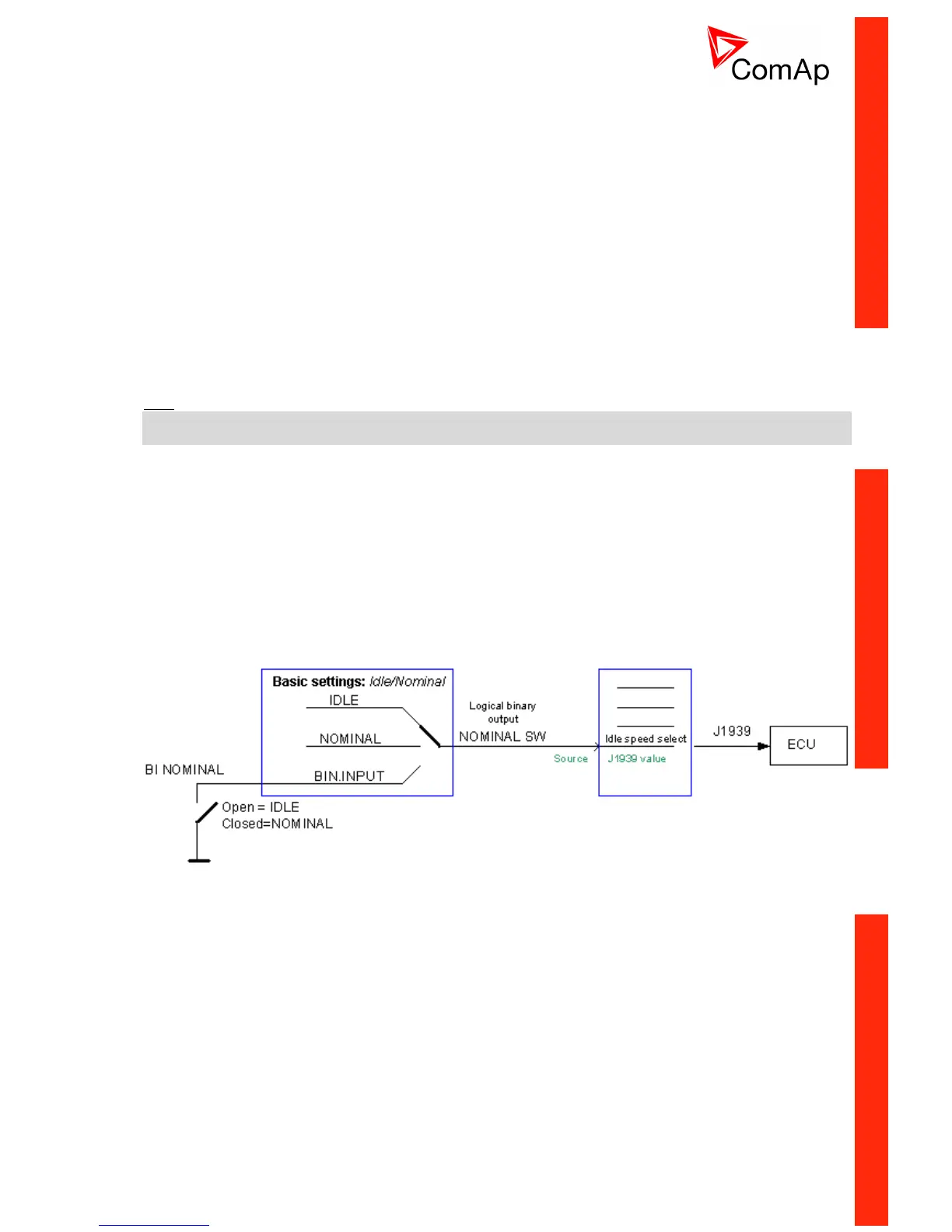

Idle/Nominal [ IDLE, NOMINAL, BIN.INPUT ]
Activates/deactivates the logical binary output Nominal Sw, that can be configured as J1939 output to
switch ECU.
BIN.INPUT: IDLE/NOMINAL mode is switched via Binary input BI Nominal (NOMINAL when closed).
