ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 32 -
ID-DCU-MARINE-2.2.2.pdf

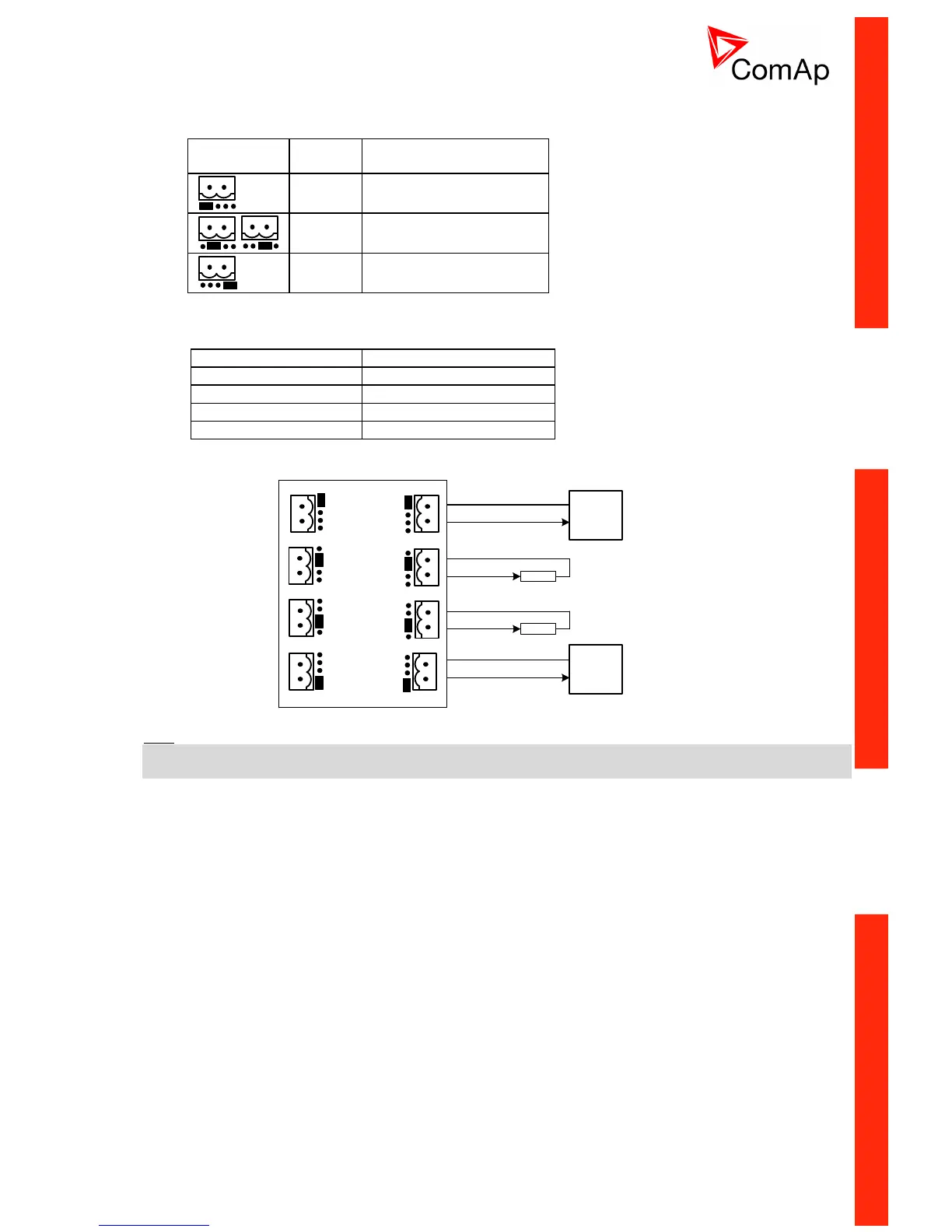

Analog output hardware modification
Follow the p-I-I-U symbols on the module sticker. There are two equivalent positions for mA measuring.
AOUT
jumper
Symbol
Function
p
Pwm
Puls-With-Modulation
I
0 to 20 mA
U
0 to 10 VDC
LED indication
Green LED is located near the power supply connector.
I-AOUT8 module state
LED Pwr
No power supply
Dark
Memory fail
Fast blink (100/100 ms)
Communication fail
Slow blink (300/300 ms)
OK
Continuous light
Wiring and jumper setting example
Voltage output
0 to 10 VDC
Current output
0 to 20 mA
Current output
0 to 20 mA
Pwm output
5V, max 10 mA
AGND
AOUT
AGND
AOUT
max 500ohm
+
+
+
max 5 mA
+
AGND
AOUT
max 500ohm
AGND
AOUT
Pwm output
1200 Hz
Current output
0 to 20 mA
Current output
0 to 20 mA
Voltage output
0 to 10 VDC
Hint:
Extension module communication fail can be configured in DriveConfig to No protection, Warning,
Shutdown.
