ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 48 -
ID-DCU-MARINE-2.2.2.pdf

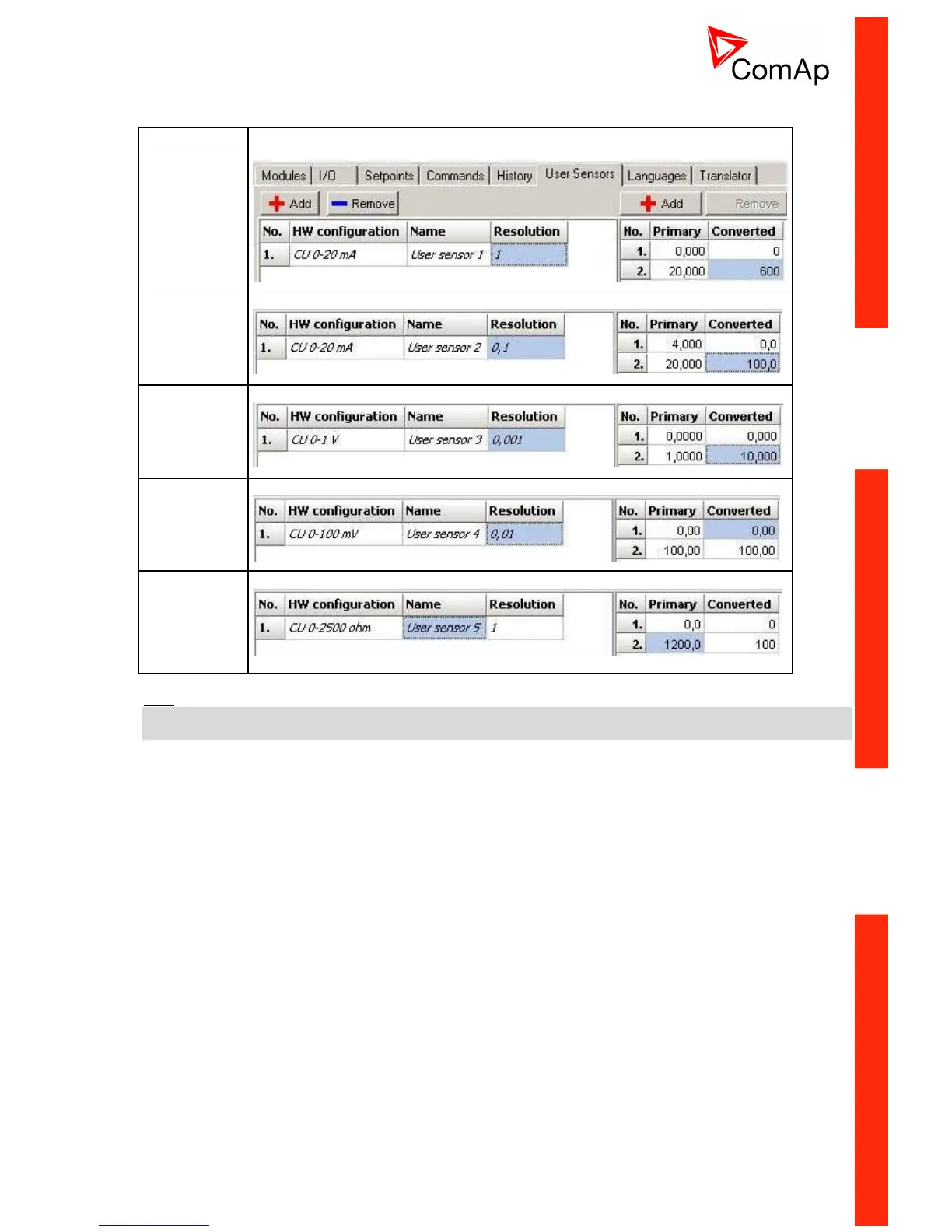

User sensor examples
Availability
Configuration
AI1 to AI4
AI5 to AI8
Analog input
jumper = 1-2
(current)
0 - 20mA / 600
AI1 to AI4
AI5 to AI8
4 - 20mA / 100,0
AI5 to AI8
Analog input
jumper = 2-3
(voltage)
0 – 1V / 10,000
AI5 to AI8
0 - 100mV / 100,00
AI1 to AI4
AI5 to AI8
Analog input
jumper = 3-4
(resistance)
0 – 1200  / 100
Hint:
It is possible to set up to 30 points non-linear sensor characteristics.
Connect external resistors (voltage divider) to extend input voltage range.
