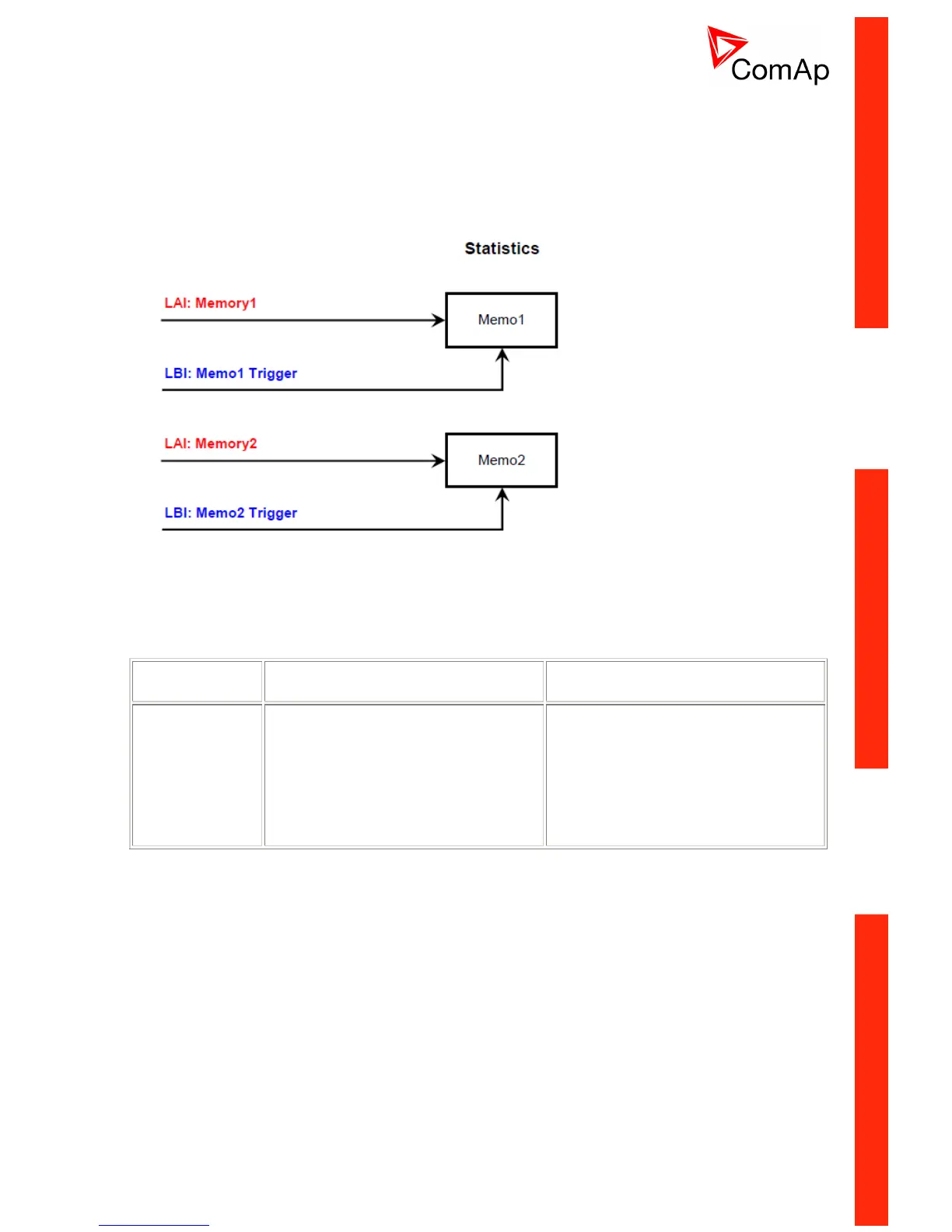

Memo1 Trigger
Rising edge forces to fill register Statistics: Memo1 by Logical Analog Input: Memory1 actual value.
Memo1 Statistics value can be set or resetted by InteliMonitor command.
Memo2 Trigger
Rising edge forces to fill register Statistics: Memo2 by Logical Analog Input: Memory2 actual value.
Memo2 Statistics value can be set or resetted by InteliMonitor command.
User Mask 1 .. User Mask 4
This input allows user to activate chosen function in ScreenEditor (tool inside DriveConfig) for particular
screen instrument. User may choose from the following functions:
None
Show
Hide
No action
regarding this
screen
instrument is
taken.
By default the screen instrument is
hidden. If any of mask inputs (User
Mask 1, User Mask 2, User Mask 3,
User Mask 4) connected to this
particular screen instrument is
activated, this screen instrument is
shown.
By default the screen instrument is
shown. If any of mask inputs (User
Mask 1, User Mask 2, User Mask 3,
User Mask 4) connected to this
particular screen instrument is
activated, this screen instrument is
hidden.
E.g. this function can be used to "swap" between two different screen instruments when certain conditions
are fulfilled. Logical binary inputs Mask 1..4 can be used to define any custom condition for this "swapping"
function.
