Develop D 16G - Document Transport Mechanism; Document Transport;Exit Mechanism

M-6
3-2. Document Transport/Exit Mechanism
(1) Document transport mechanism

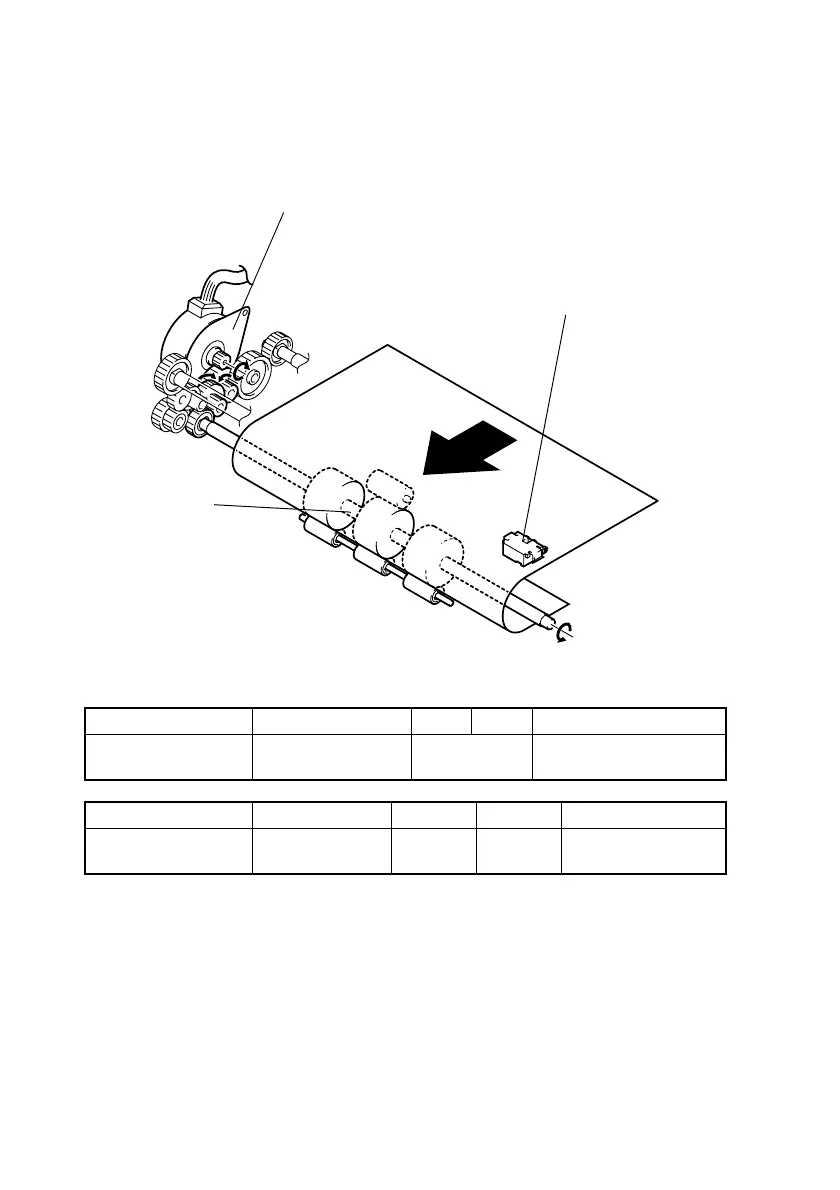

• The original that has been taken up blocks the Paper Take-up Sensor. The Transport
Roller turns to transport the original up to the document scanning position of the printer.
• The AF Main Motor drives the Transport Roller through a gear train.
Electrical Component Control Signal ON OFF WIRING DIAGRAM
M5
PWB-A AF
PA01OA AF-1~4
Pulse output F~G-2~3
Electrical Component Control Signal Blocked Unblocked WIRING DIAGRAM
PC2
PWB-A AF
PA06A AF-1
LH D~E-2~3
AF Main Motor (M5)
1382M003AB
Transport Roller
Paper Take-up Sensor (PC2)
