14-2. Original Cover Open/Close Detection Mechanism

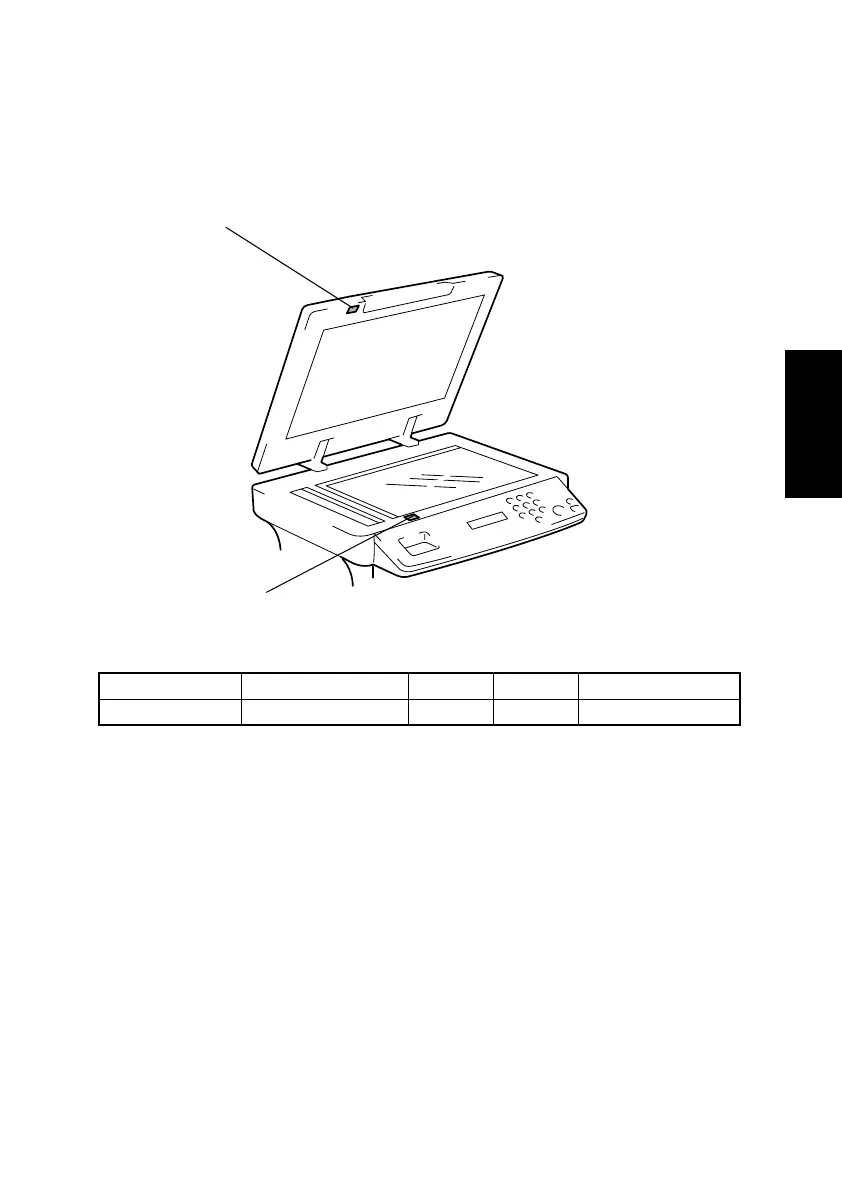

• There is a magnet provided in the Original Cover, allowing the printer to detect the posi-
tion of the cover whether the cover is raised or lowered.
• This magnet attracts the Original Cover Set Sensor provided on the printer side, thus
activating the sensor. The printer will then detect the position of the Original Cover.
Electrical Parts Control Signal Blocked Unblocked WIRING DIAGRAM
PS2 PWB-O P701O-1 to 2 L H F-9
Original Cover Set Sensor (PS2)
Magnet
4980M008AA
