Develop D 16G - Removal of Units

D-15
3-3. Removal of Units

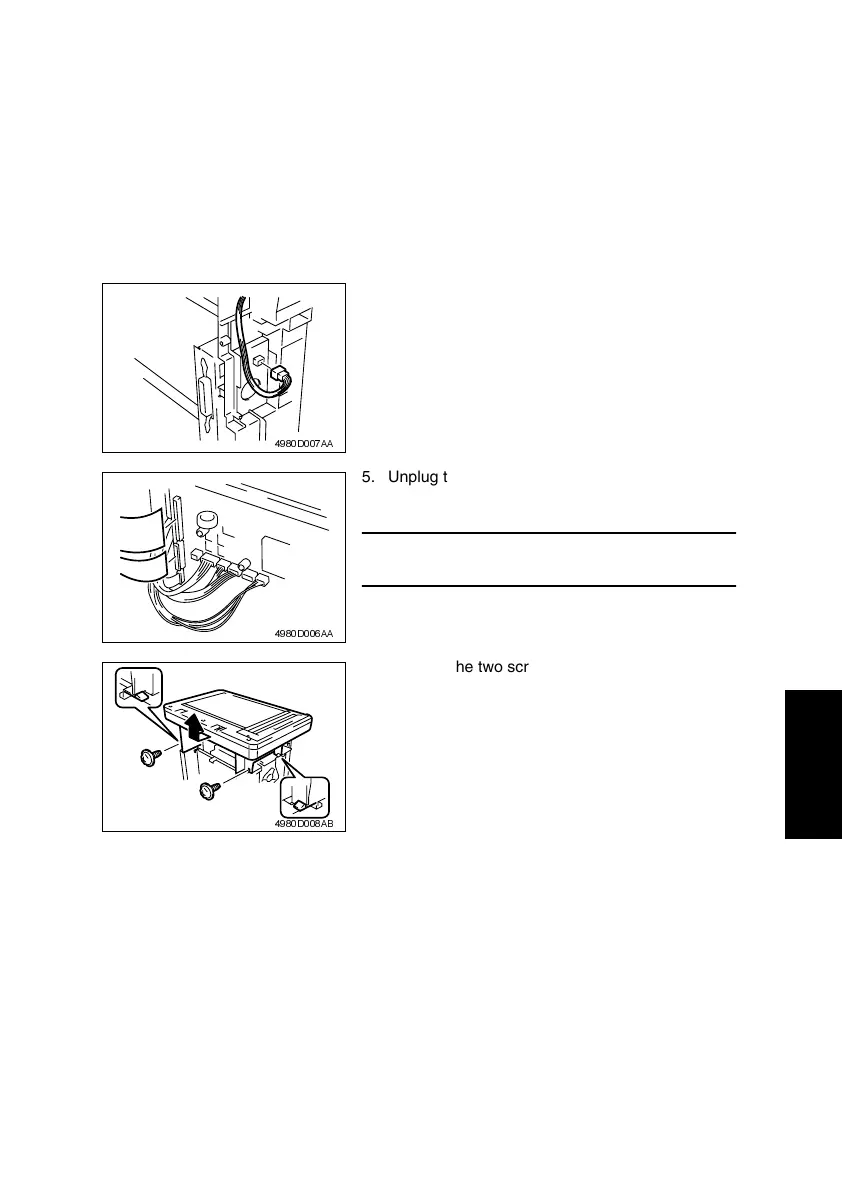

(1) Removal of the IR Unit
1. Remove the Left Cover.
☞ D-7
2. Remove the Right Cover.
☞ D-7
3. Remove the Rear Cover.
☞ D-7
4. Unplug the connector.
4980D007AA
5. Unplug the two flat cables from the Controller/
Mechanical Control Board.
NOTE
• Be extremely careful not to break the flat cables.
4980D006AA
6. Remove the two screws, unhook the two tabs,
and then remove the IR Unit.
4980D008AB
