Develop D 16G - Paper Path Description

M-4

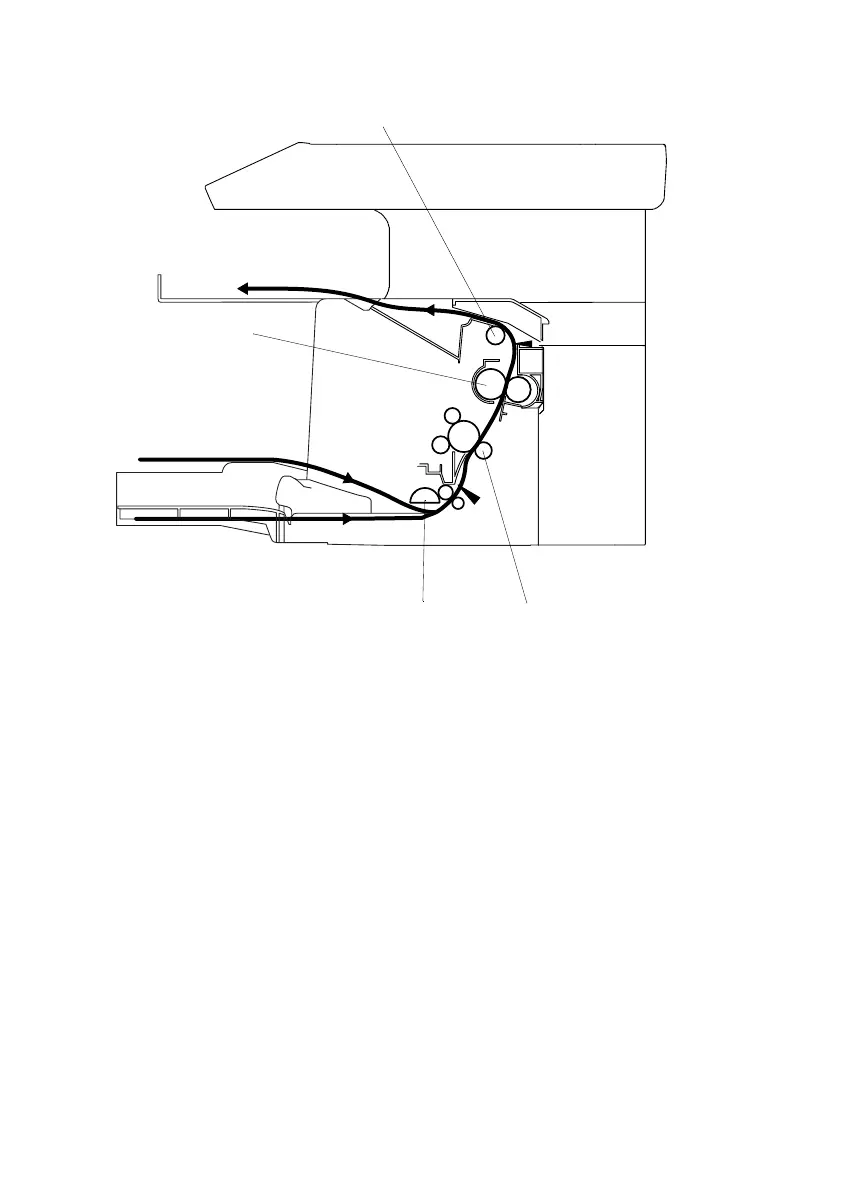

3. PAPER PATH
• The system employs a two-way paper supply system, in which paper is fed from either
Tray 1 or the Multiple Bypass Tray.
• When the optional Paper Feed Cassette is mounted, the system offers a three-way
paper supply system.
• The paper taken up and fed in by the Paper Take-Up Roll is transported through the
printer by the Image Transfer Roller, Fusing Roller, and Exit Roller and fed out of the
printer face down onto the Exit Tray.
Tray 1
Exit Tray
4980M005AA
Multiple Bypass Tray
Paper Take-Up Roll
Image Transfer Roller
Fusing Roller
Exit Roller
