(2) Document exit mechanism

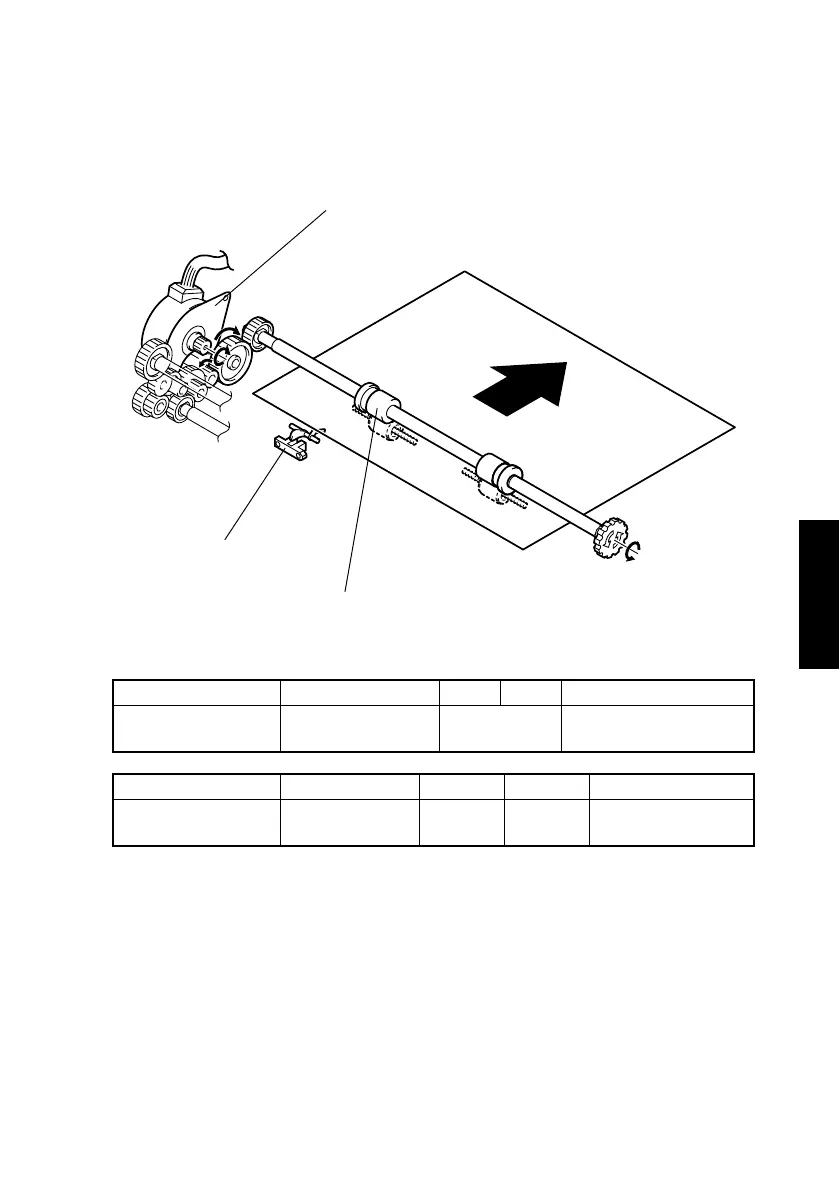

• The Exit Roller turns to feed the original out of the Document Feeder. During this
sequence, the original blocks the Leading Edge Detection Sensor and is fed onto the
Document Exit Tray.
• The AF Main Motor turns the Exit Roller through a gear train.
Electrical Component Control Signal ON OFF WIRING DIAGRAM
M5
PWB-A AF
PA01 OA AF -1~4
Pulse output F~G-2~3
Electrical Component Control Signal Blocked Unblocked WIRING DIAGRAM
PC3
PWB-A AF
PA03A AF-1
LH D-2~3
AF Main Motor (M5)
Exit Roller
1382M004AC
Leading Edge Detection
Sensor (PC3)
