3. DISASSEMBLY/REASSEMBLY

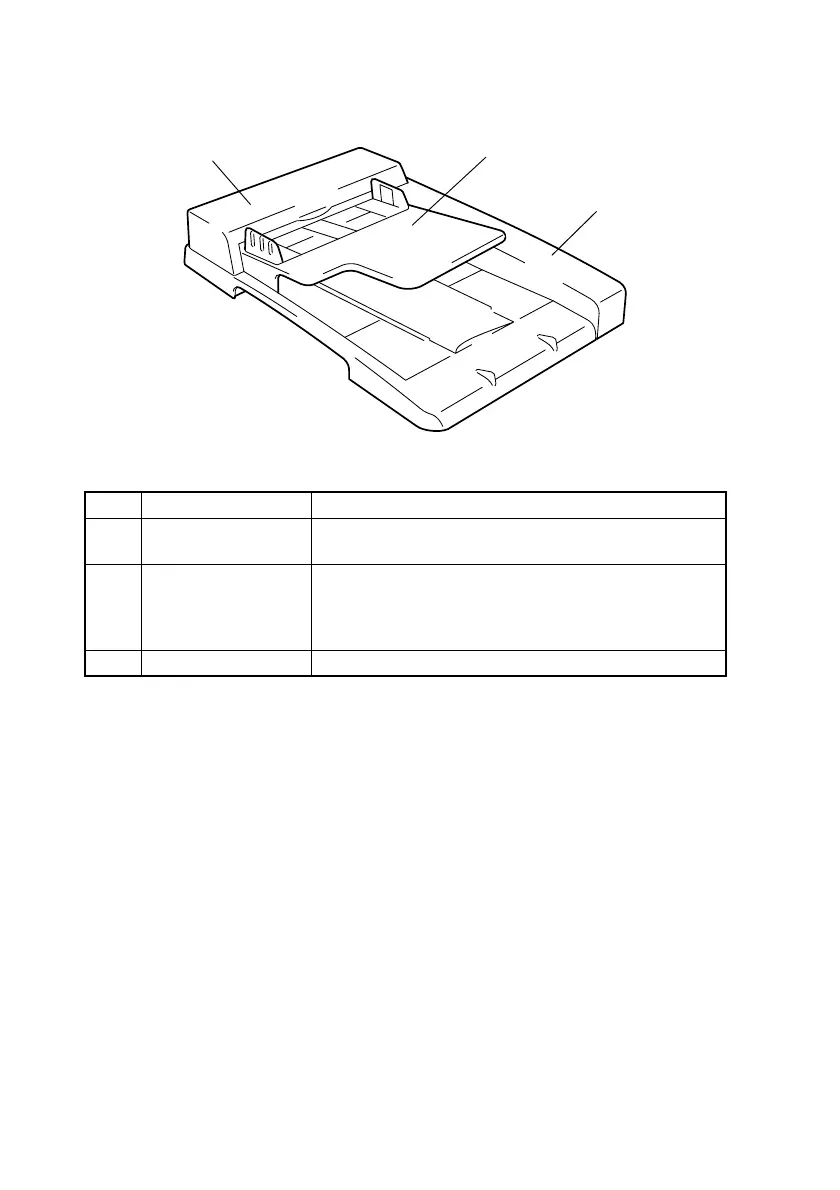

3-1. Names/Removal of External Parts
No. Name Removal Procedure
1
Document Feeder
Cover
Open the Document Feeder Cover. → Remove the two
screws. → Remove the Document Feeder Cover.
2 Document Feeder Tray
Open the Document Feeder Cover. → Remove the Rear
Cover. → Remove the screw, and then remove the Docu-
ment Feed Knob. → Remove the two screws. → Remove
the Document Feeder Tray.
3 Rear Cover Remove the screw. → Remove the Rear Cover.
2
1
3
1382D001AB
