Develop D 16G - Removal of Circuit Boards; Removal of the Automatic Document Feeder Control Board

D-7
3-2. Removal of Circuit Boards
NOTE
• When removing a circuit board, refer to the precautions for handling printed circuit boards
and follow the corresponding removal procedures.
• The following removal procedures omit the removal of the applicable component from
connectors and circuit board supports.
• When it is necessary to touch ICs and other electrical components on the circuit board,
be sure to first ground yourself.

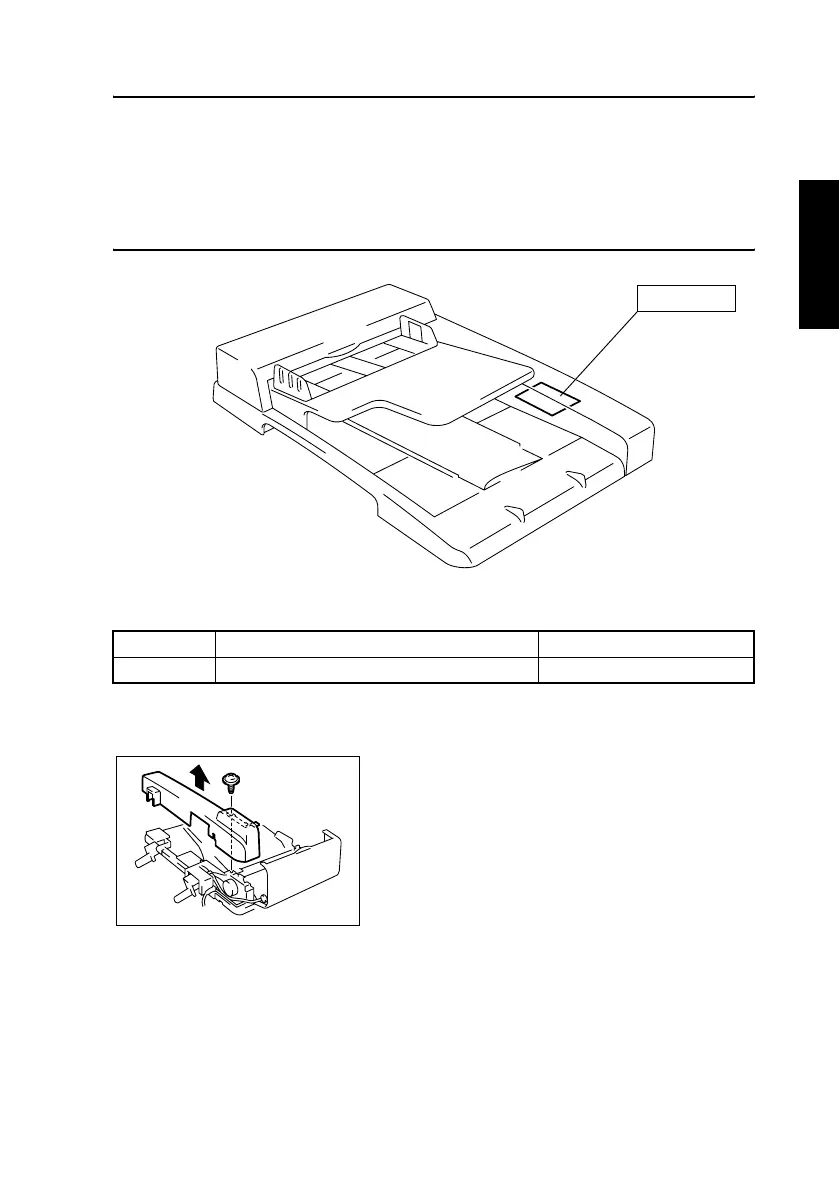

(1) Removal of the Automatic Document Feeder Control Board
Symbol Name Removal Procedure
PWB-A ADF Automatic Document Feeder Control Board ☞ D-7
PWB-A ADF
1382D006AA
1. Remove the screw, unhook the six tabs, and then
remove the Rear Cover.
1382D002AB
