Develop D 16G - Replacement;Cleaning of Parts; Cleaning of the Paper Take-Up Roll; Replacement of the Paper Take-Up Roll

D-2
2. REPLACEMENT/CLEANING OF PARTS

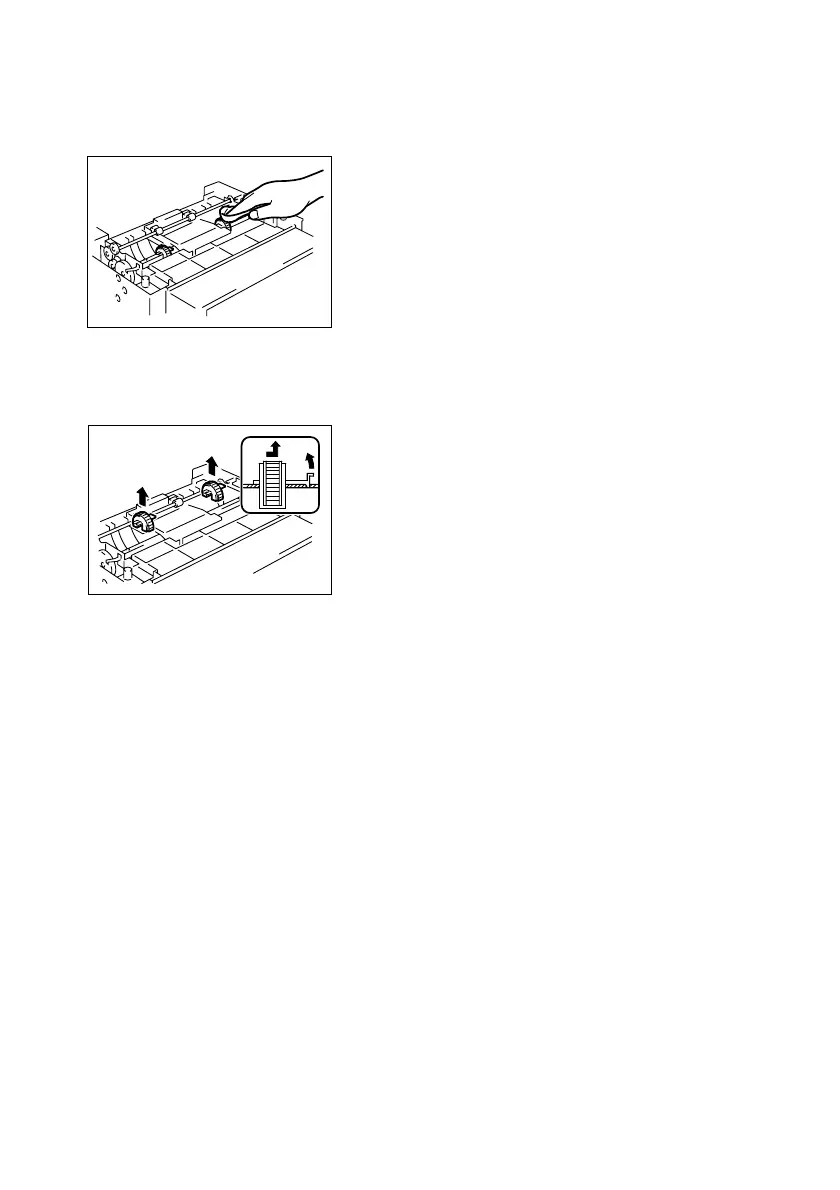

(1) Cleaning of the Paper Take-Up Roll
1. Raise the main unit to separate it from the Paper Feed Cassette.
(2) Replacement of the Paper Take-Up Roll
1. Raise the main unit to separate it from the Paper Feed Cassette.
2. Using a soft cloth, wipe clean the surface of the
Paper Take-Up Roller.
4136E002AA
2. Remove the Paper Take-Up Roller at the two
points indicated.
4136E004AC
