Develop D 16G - Moving the EEPROM

D-47
5-5. Moving the EEPROM
NOTE
• After the Controller/Mechanical Control Board (PWB-P) is replaced, be sure to move the
EEPROM form the old Controller/Mechanical Control Board to the new one.
Remove the EEPROM (U39) from the old Controller/Mechanical Control Board, and then
attach it to the new Controller/Mechanical Control Board.

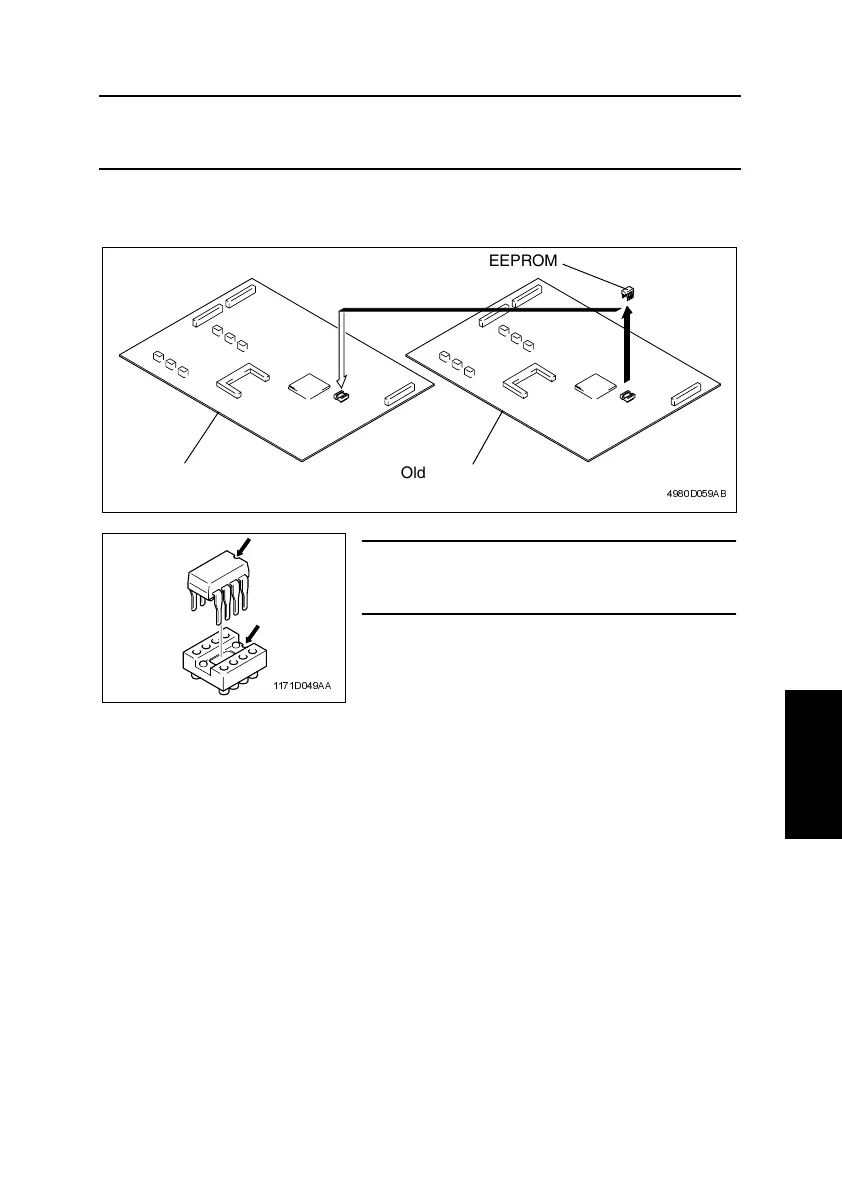

4980D059AB
EEPROM
Old Controller/Mechanical Control
Board
New Controller/Mechanical Control
Board
NOTE
• Be sure to install the EEPROM (U39) so that notch
A faces the correct direction.
1171D049AA
A
A
