Develop D 16G - Removal of the High Voltage Unit

D-14
(5) Removal of the High Voltage Unit
1. Remove the Power Unit Assy.
☞ D-12

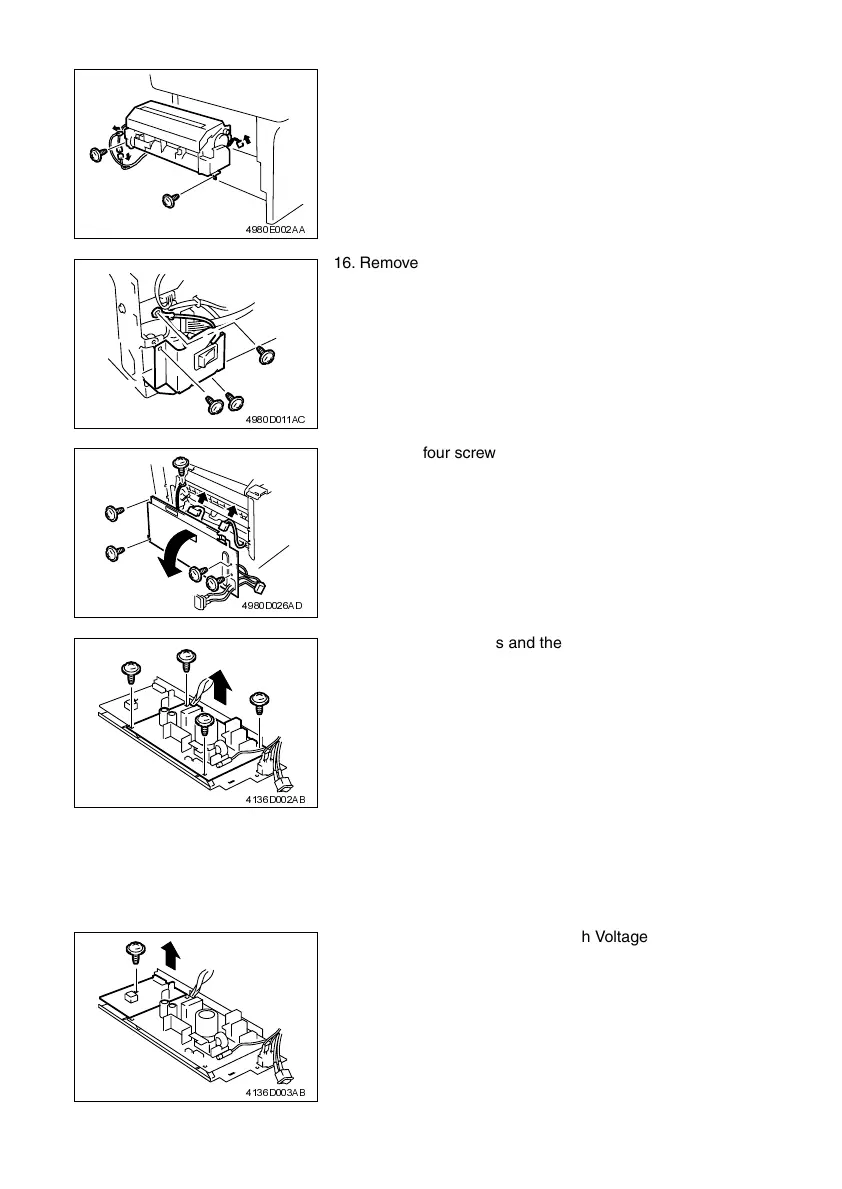

15. Remove the two screws, unplug the three con-
nectors, and then remove the Fusing Unit Assy.
4980E002AA
16. Remove three screws and the Power Switch stay.
17. Remove the Power Switch.
4980D011AC
18. Remove four screws, disconnect three connec-
tors, and remove the Power Unit Assy.
4980D026AD
19. Remove four screws and the Power Unit.
4136D002AB
2. Remove one screw and the High Voltage Unit.
4136D003AB
