Develop D 16G - Laser Emission Area; Main Scanning Direction; Sub-Scanning Direction

M-21

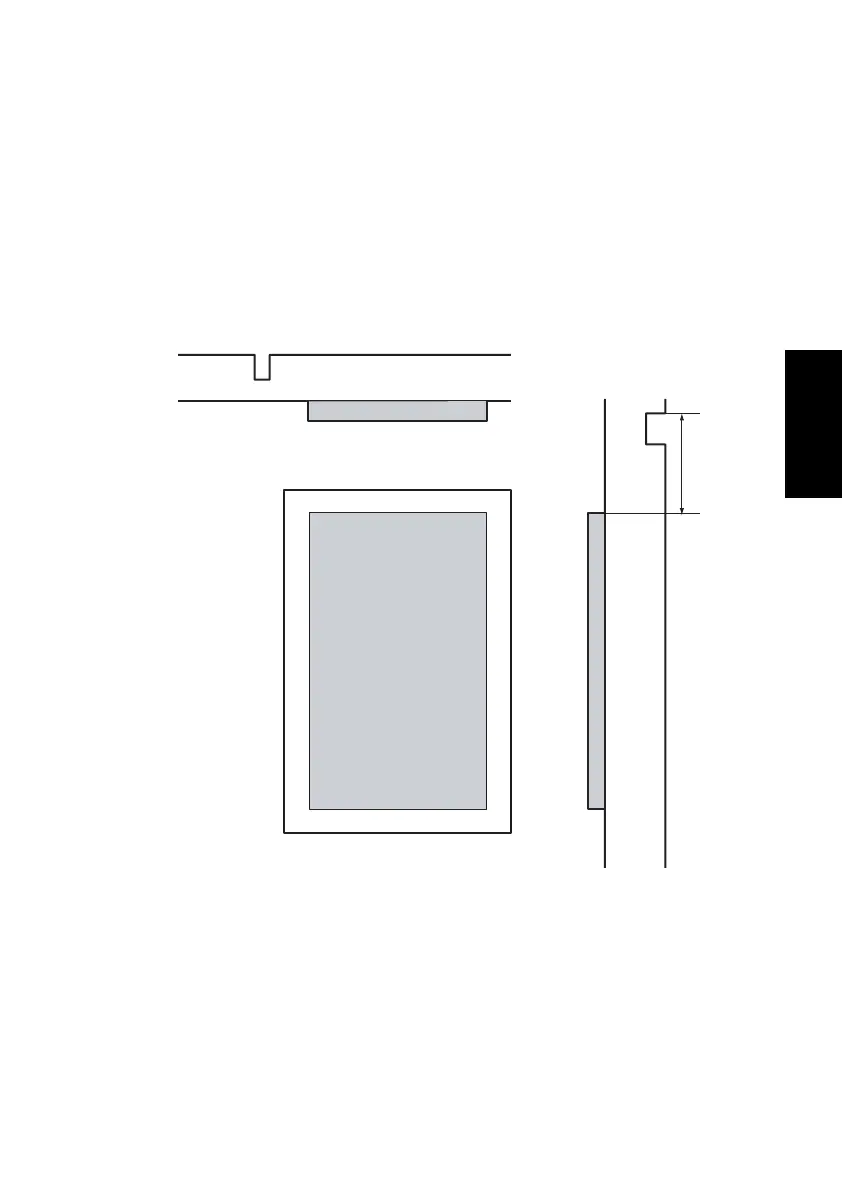

9-4. Laser Emission Area
(1) Main scanning direction
• The print start position is determined by the main scanning print start signal (/HSYNC)
output from the Controller/Mechanical Control Board and the width of the paper.
• The laser emission area is determined by the paper size.
(2) Sub-scanning direction
• The print start position is determined by the sub-scanning print start signal (/TOD) output
from the Controller/Mechanical Control Board and the length of the paper.
• The laser emission area is determined by the paper size.
4980M016AB
/HSYNC
/VIDEO
/VIDEO
/TOD
