3. DISASSEMBLY/REASSEMBLY

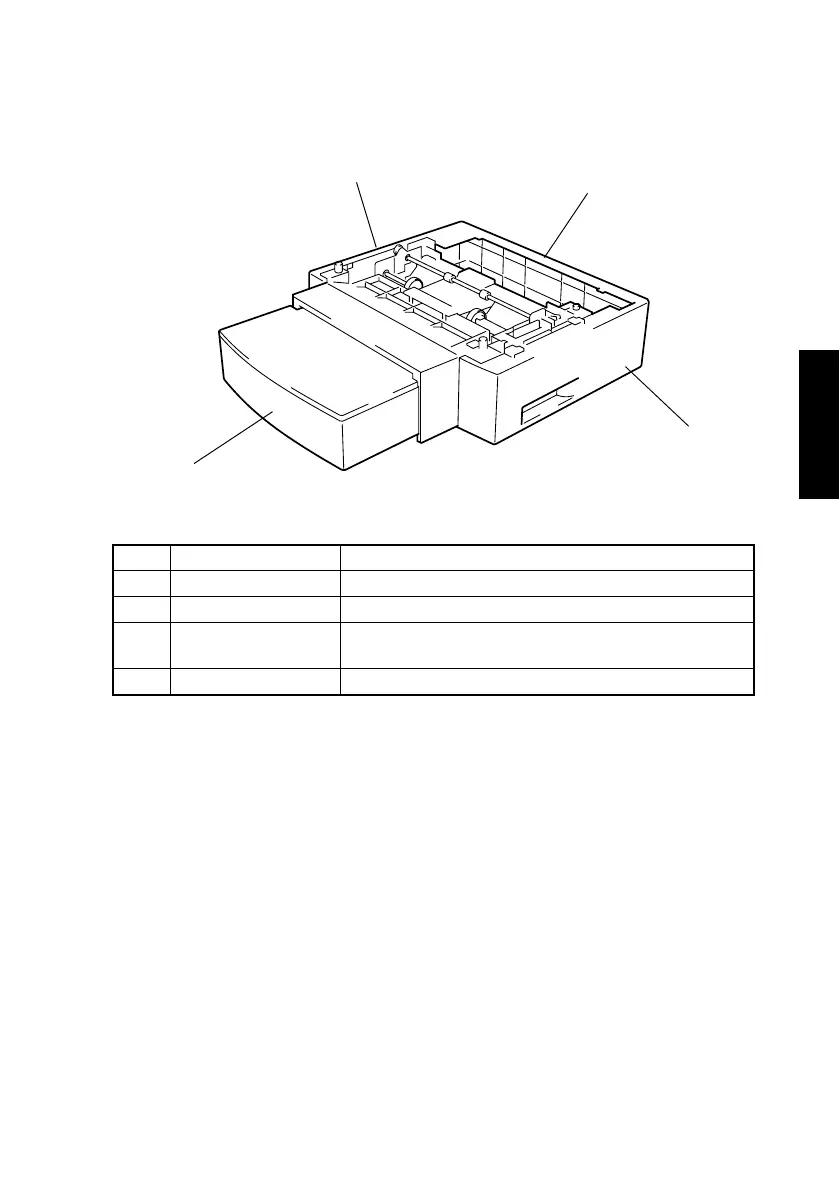

3-1. Identification of Exterior Parts and Removal Procedures for
Them
No. Name Removal Procedure
1 Rear Cover Remove the five screws. → Remove the Rear Cover.
2 Right Cover Remove the Rear Cover. → Remove the Right Cover.
3Tray 2
Hold down the Paper Feed Cassette with one hand and
remove Tray 1.
4 Left Cover Remove the Rear Cover. → Remove the Left Cover.
4
1
1
3
