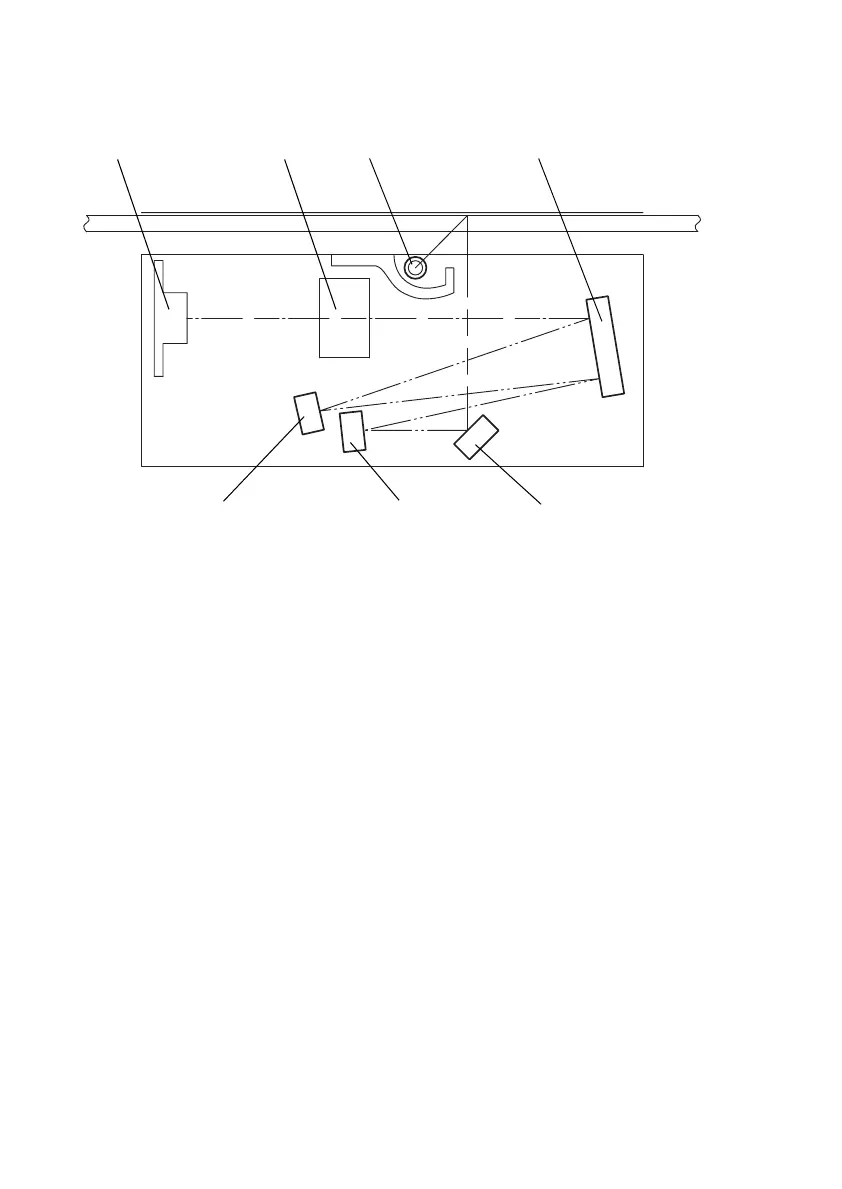

8-2. Exposure Components Section
1. Exposure Lamp
• A CCFL lamp is used to illuminate the surface of the original.
2. 1st Mirror
• Reflects the light reflected off the surface of the original, directing it to the 2nd Mirror.
3. 2nd Mirror
• Reflects the light reflected off the 1st Mirror, directing it to the 3rd/5th Mirror.
4. 3rd/5th Mirror
• Reflects the light reflected off the 2nd Mirror, directing it to the 4th Mirror.
• Reflects the light reflected off the 4th Mirror, directing it to the CCD through the Lens.
5. 4th Mirror
• Reflects the light reflected off the 3rd Mirror, directing it to the 3rd/5th Mirror.
4980M019AA
1
2
3
5
4
CCD Lens
