M-8
3-3. Miscellaneous

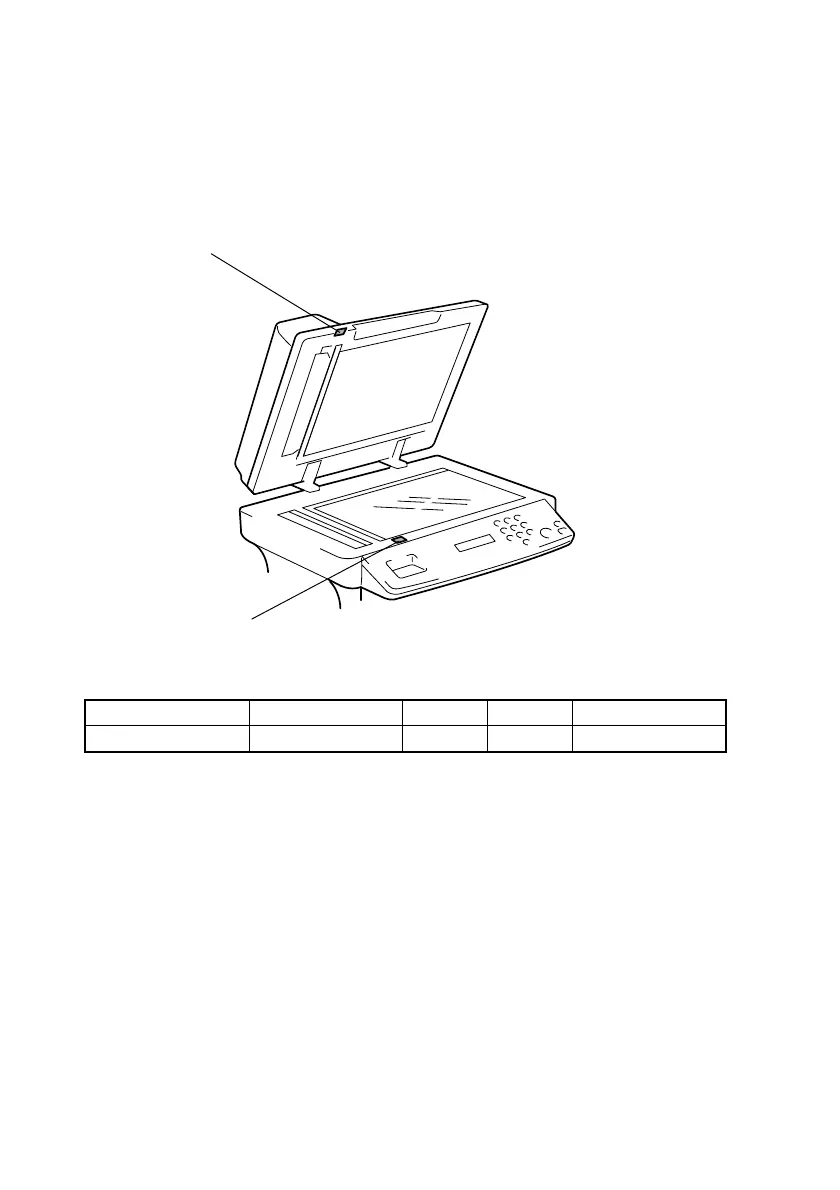

(1) Document Feeder raised/lowered position detection mechanism
• There is a magnet provided in the Document Feeder, allowing the printer to detect the
position of the Document Feeder whether the Document Feeder is raised or lowered.
• This magnet attracts the Original Cover Set Sensor provided on the printer side, thus
activating the sensor. The printer will then detect the position of the Document Feeder.
Electrical Component Control Signal Blocked Unblocked WIRING DIAGRAM
PS2 PWB-O P701O-1~2 L H F-9
Original Cover Set Sensor (PS2)
Magnet
1382M008AA
To Next Page
