Develop D 16G - Removal of the Timing Belt

D-20
(5) Removal of the Timing Belt
1. Remove the Original Cover.
2. Remove the Upper Cover Assy. (Original Glass).
☞ D-18
3. Remove the Scanner Assy.
☞ D-19

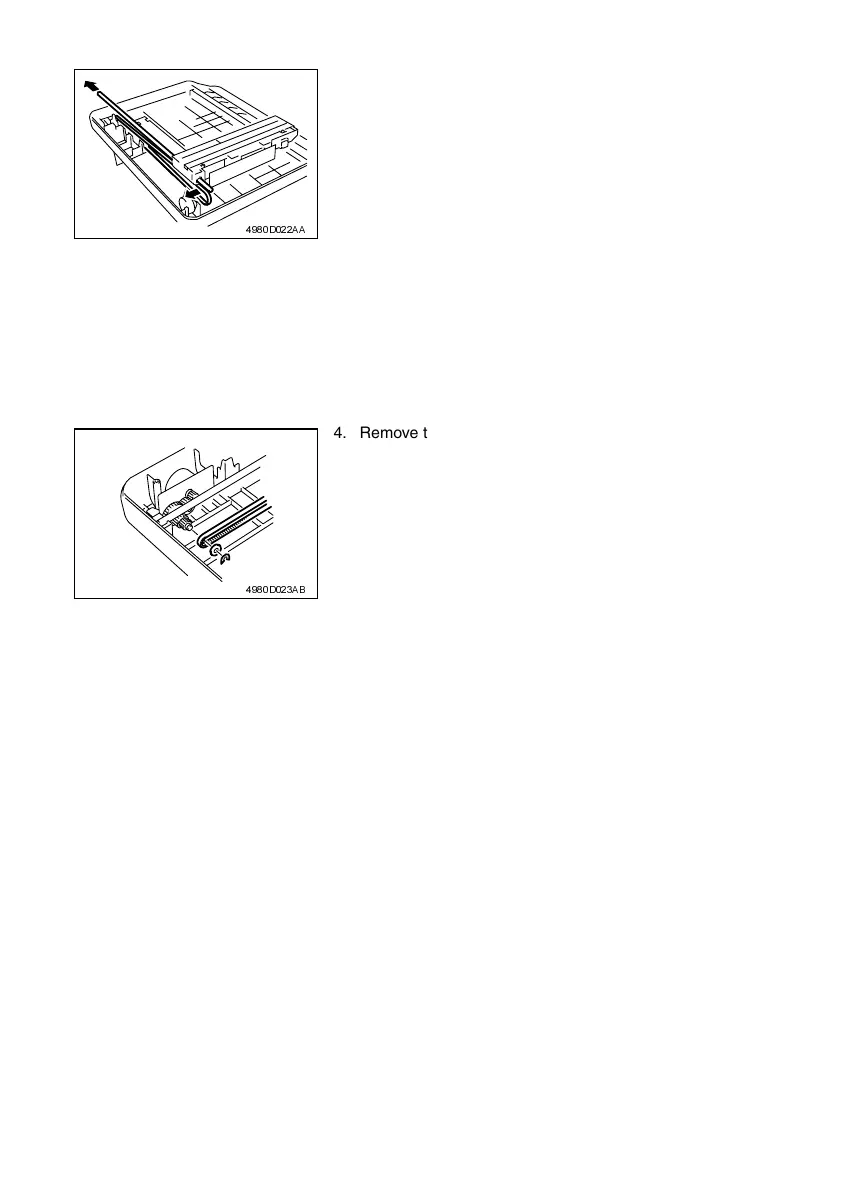

5. Remove the Timing Belt and shaft, and then
remove the Scanner Assy.
4980D022AA
4. Remove the C-clip.
5. Remove the washer.
6. Remove the Timing Belt.
4980D023AB
