D-6

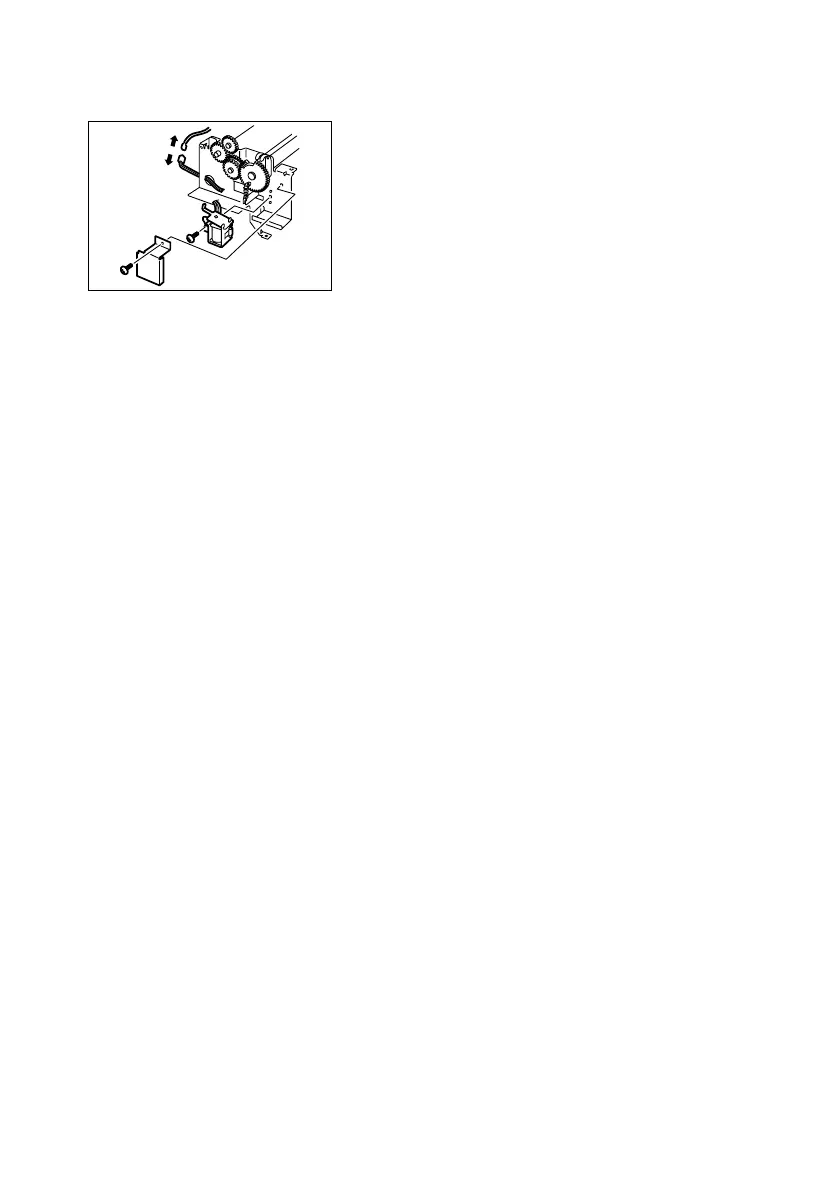

(3) Removal of the Paper Feed Cassette Paper Take-Up Solenoid
1. Remove the Paper Feed Cassette Paper Take-Up Unit.
2. Remove the screw, and then remove the cover.
3. Remove the screw, unplug the connector, and
then remove the Paper Feed Cassette Paper
Take-Up Solenoid.
4136D038AA
