Develop D 16G - Paper Exit Mechanism

M-29
13. PAPER EXIT

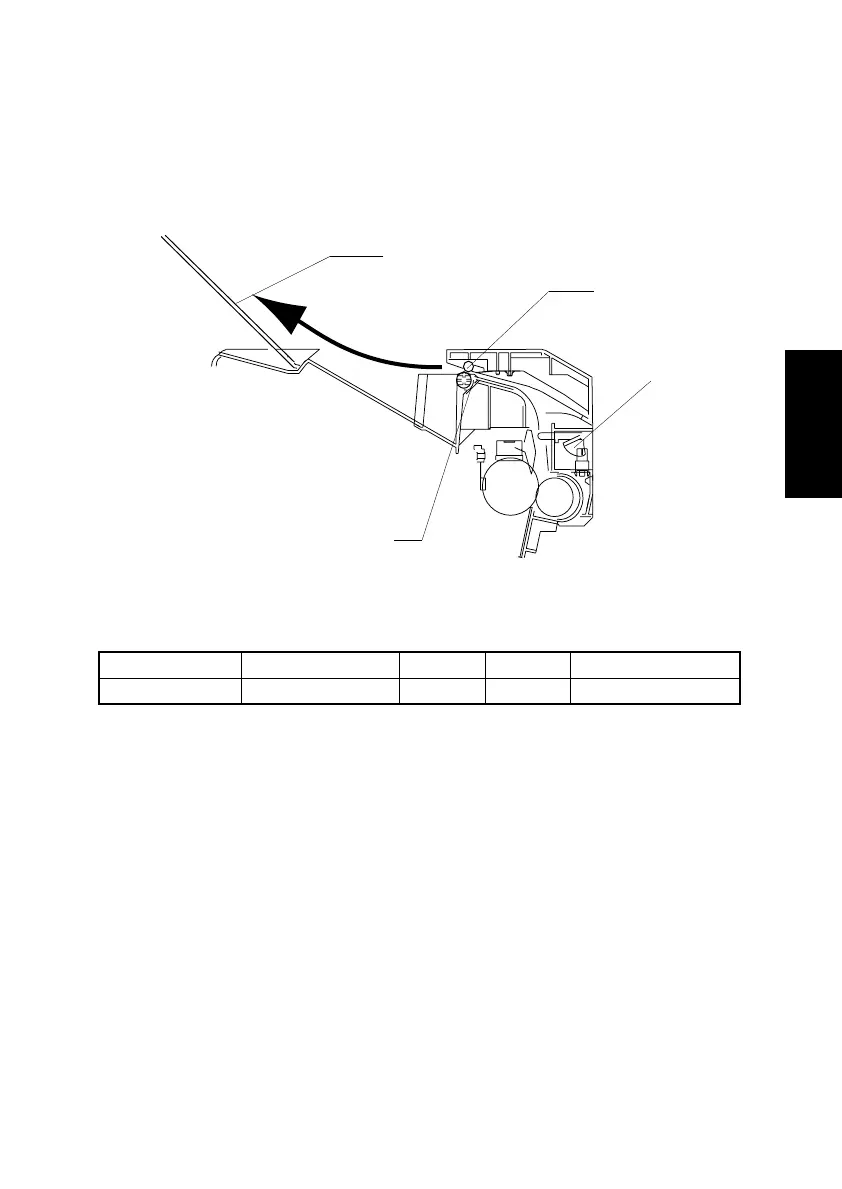

13-1. Paper Exit Mechanism
• The paper exit mechanism transports the paper that has been subjected to the fusing
process onto the Exit Roller.
• The Exit Sensor detects not only a paper misfeed but also an open Upper Cover.
Electrical Parts Control Signal Blocked Unblocked WIRING DIAGRAM
PS1 PWB-P MPJ8P-3 L H F to G-2
Face-down Exit
Exit Roll
Exit Tray
Exit Roller
4136M516AA
Exit Sensor (PS1)
