Develop D 16G - Removal of the Torque Limiter

D-25

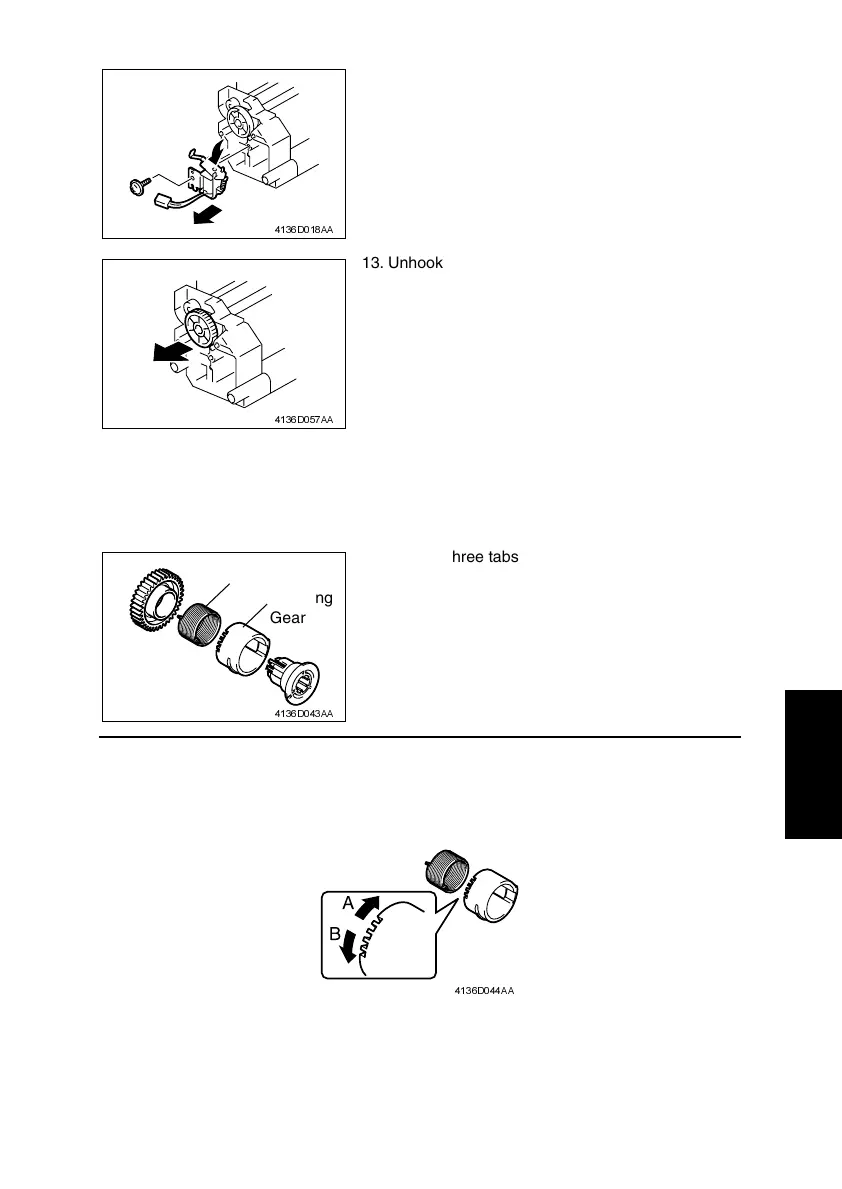

(5) Removal of the Torque Limiter
1. Remove the Paper take up Clutch Gear.
☞ D-24
Precautions for Installation of the Torque Limiter
Coupling Gear has five dent for adjustment the Take-up Roller position. When Torque Lim-
iter is replaced, adjust the set position of the Coupling Gear so that the Take-up Roller
becomes level. The procedure is as follow.
12. Remove one screw and the Paper Take-Up Sole-
noid.
4136D018AA
13. Unhook two tabs and remove the Paper Take-Up
Clutch Gear.
4136D057AA
2. Unhook three tabs and take apart the Paper
Take-Up Clutch Gear then, remove the Torque
Limiter.
4136D043AA
Torque Limiter
Coupling
Gear
4136D044AA
