M-2
1-1. Paper Take-up Mechanism
• Because of no drive motor installed for the Paper Feed Cassette, drive from the Main
Motor (M1) of the printer is transmitted to the cassette by way of a drive coupling gear for
paper take-up and transport.
• Except that the Paper Separator Fingers are used for paper separation, the paper take-
up mechanism is the same as that for Tray 1.
• The paper separation mechanism uses the Paper Separator Fingers provided in the cas-
sette and the elasticity the paper has in its own right. It ensures that only one sheet of
paper is taken up at one paper take-up sequence.
• The Paper Take-up Solenoid is controlled from the printer side by way of the control
board of the optional Paper Feed Cassette.

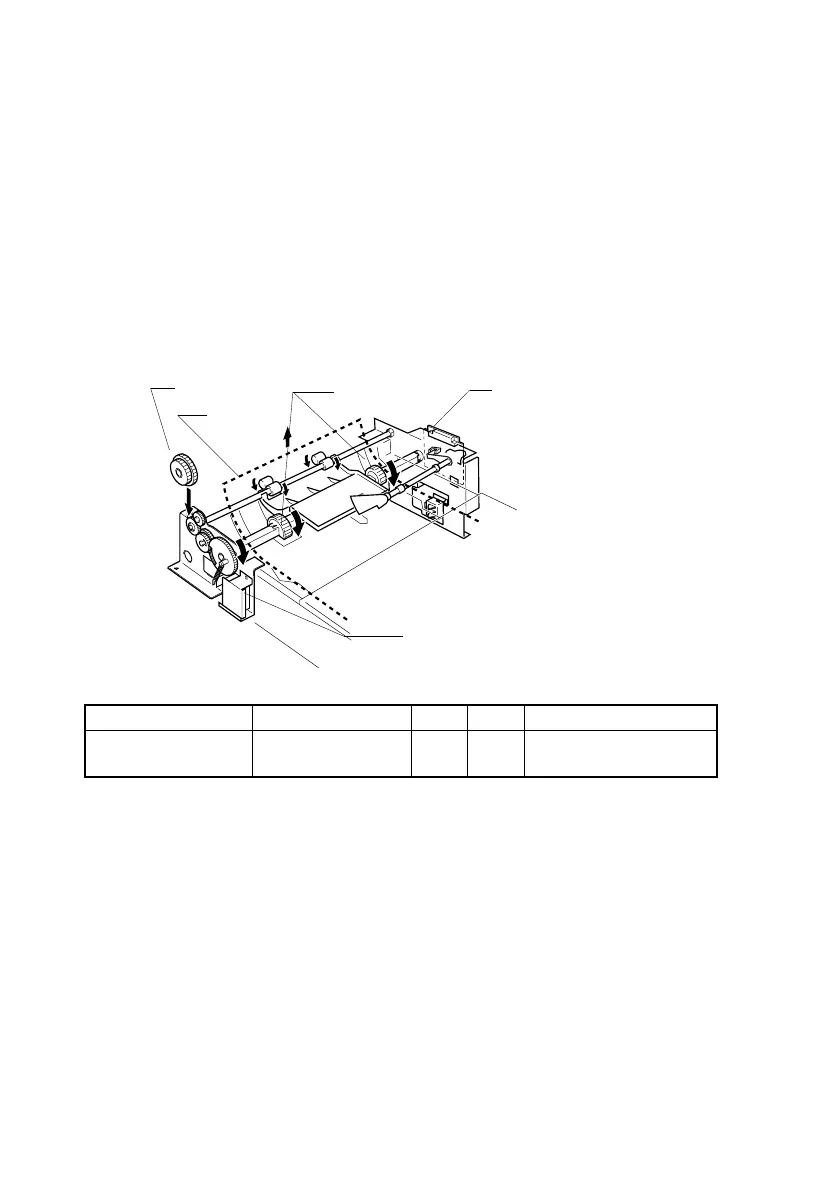

Electrical Component Control Signal ON OFF WIRING DIAGRAM
SL2
PWB-A CAS
MPJ22A CAS-2
LH E~F-5
Coupling Gear
Paper Take-up
Roller
2nd Drawer Control
Board (PWB-A CAS)
Paper
2nd Drawer Take-up
Solenoid (SL-2)
4127s024
