Appendix M: The Joystick Adapter
In order to use a joystick with your device you must have an adapter to plug into your device and

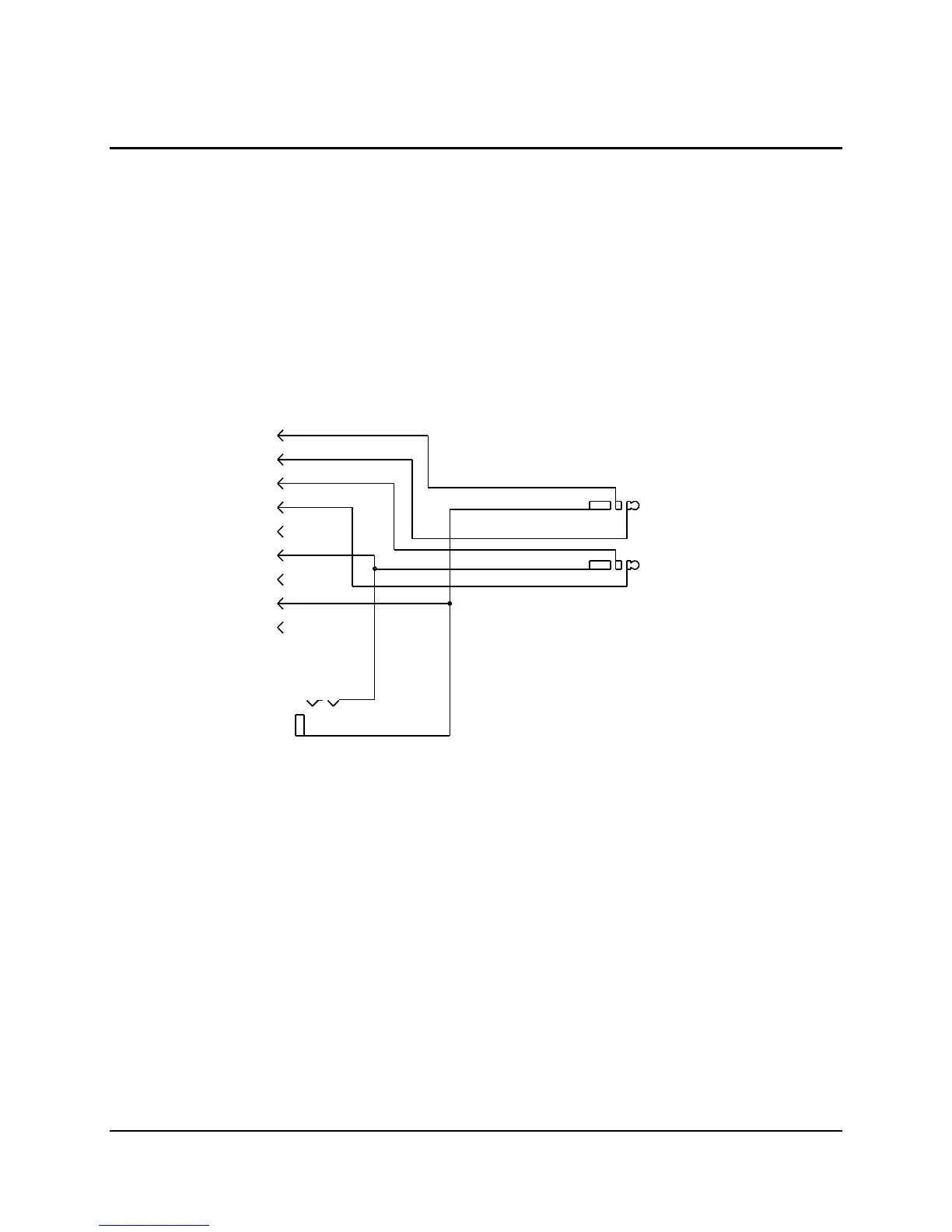

your joystick. The schematic below shows you the adapter specifications. You can also call the
PRC Rehab Department and ask about the availability of Joystick adapters, 330-262-1990.
9
6
8
7
5
4
2
3
1
T O J O
Y
ST I C K
9 P I N D S U B
T O S E L E C T S W I T C H
1 / 8 ” J A C K
T O D
E VI C E
S W I T C H B
1 / 8 ” P L U G
T O
D E V I C E
S W I T C H A
1 / 8 ” P L U G
J O Y S T I C K A D A P T E R C A B L E
