Showing Port Statistics

8-25

Web – Click Port, Port Statistics. Select the required interface, and click Query. You

can also use the Refresh button at the bottom of the page to update the screen.

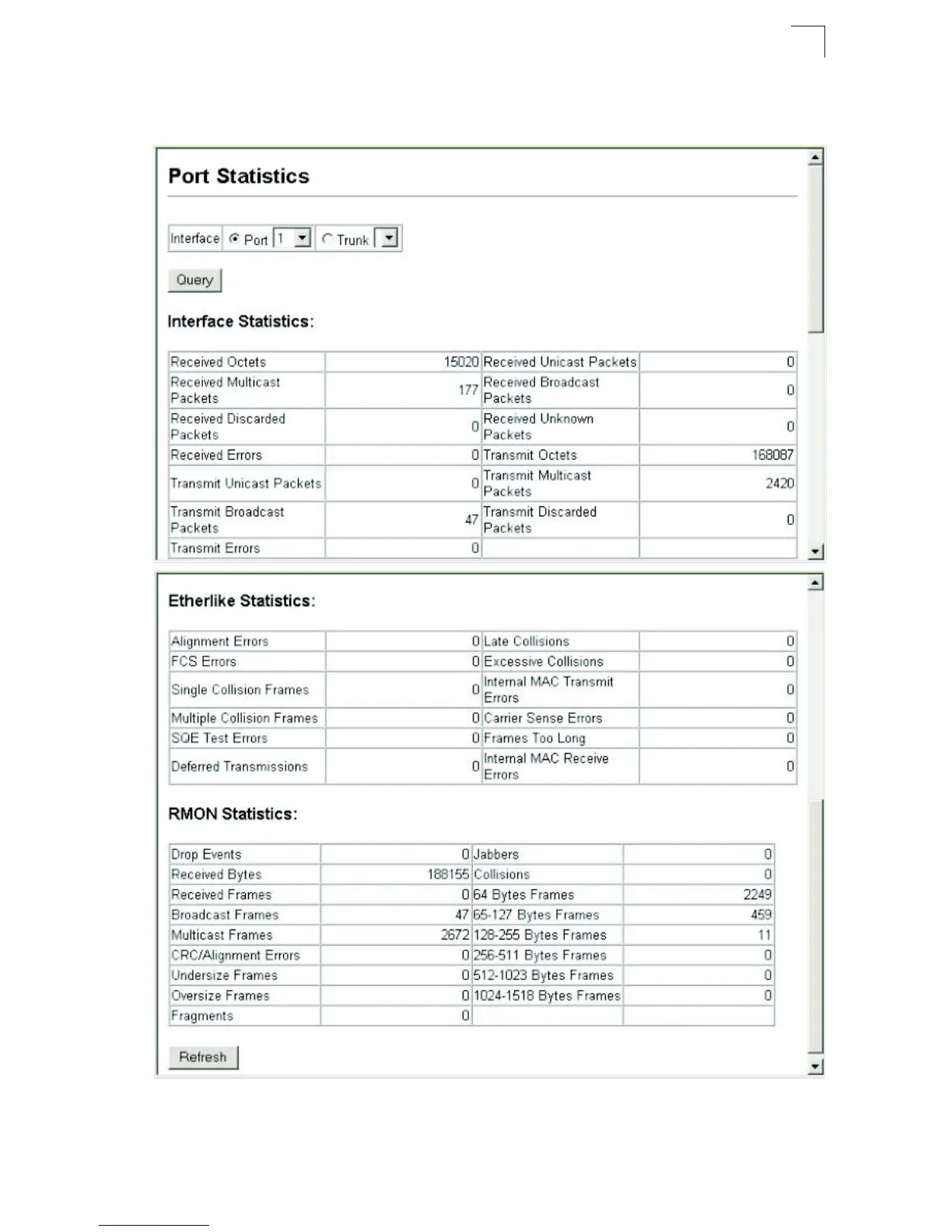

Figure 8-12 Port Statistics
