Configuring Global Settings

10-9

Web – Click Spanning Tree, STA, Configuration. Modify the required attributes, and

click Apply.

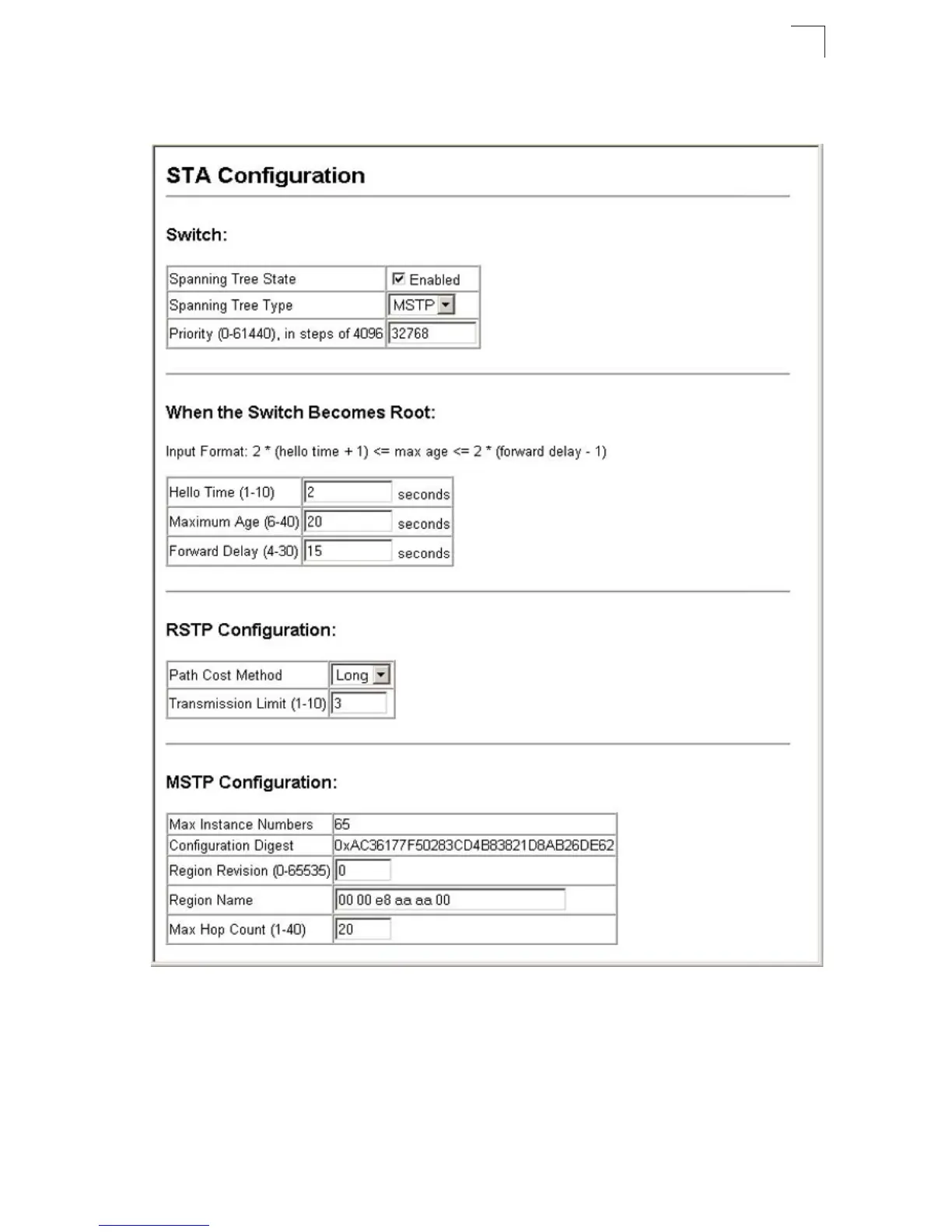

Figure 10-2 STA Global Configuration
