Unicast Routing

20-34

Web - Click Routing Protocol, OSPF, Summary Address Configuration. Specify the

base address and network mask, then click Add.

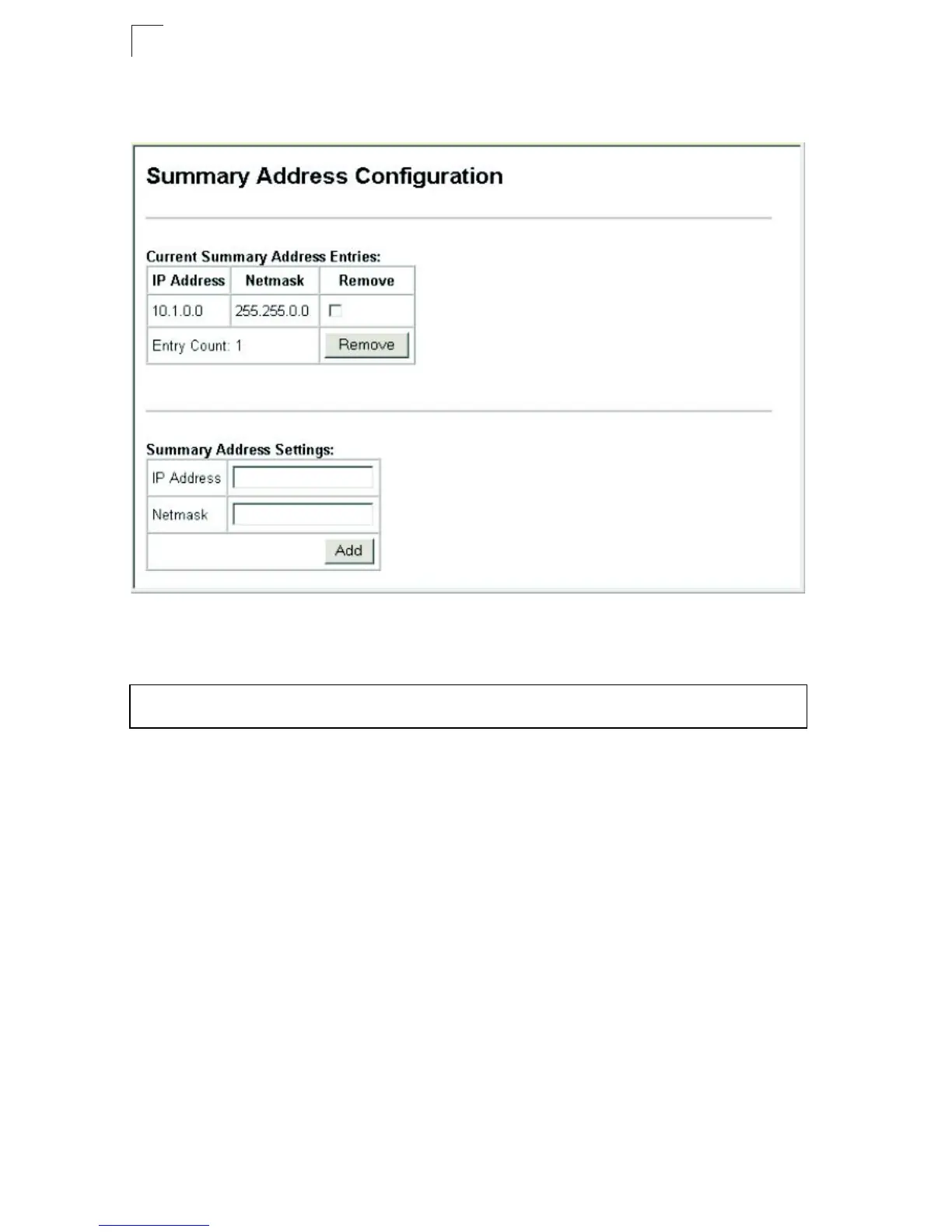

Figure 20-13 OSPF Summary Address Configuration

CLI - This example This example creates a summary address for all routes

contained in 192.168.x.x.

Console(config-router)#summary-address 192.168.0.0 255.255.0.0 42-24

Console(config-router)#
