Configuring Router Redundancy
18-6
18
Click the Edit button for a group entry to open the detailed configuration window.
Enter the IP address of a real interface on this router to make it the master virtual
router for the group. Otherwise, enter the virtual address for an existing group to
make it a backup router, or to compete as the master based on configured priority if
no other members are set as the owner of the group address. Click Add IP to enter
an IP address into the Associated IP Table. Then set any of the other parameters as
required, and click Apply.

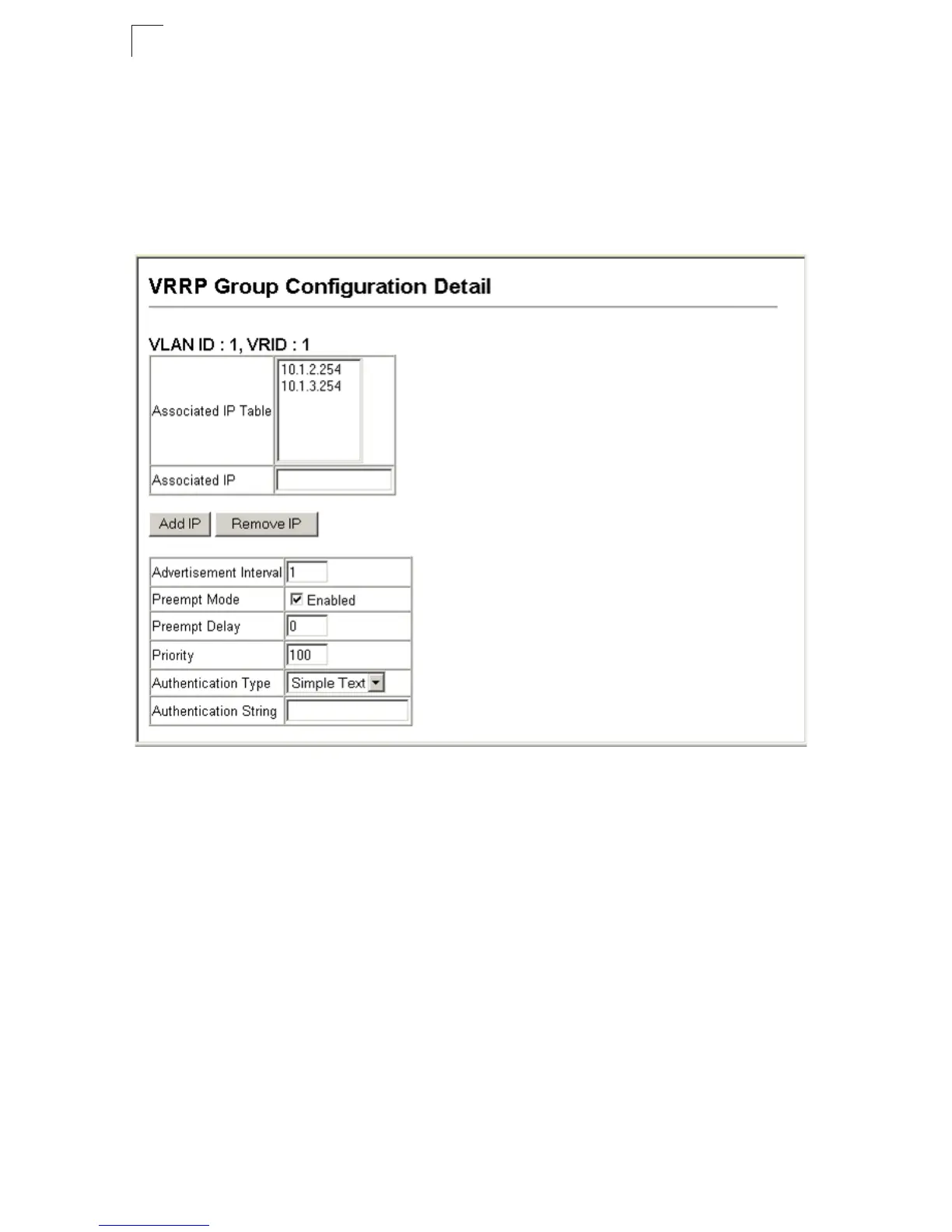

Figure 18-2 VRRP Group Configuration Detail
