Configuring the Switch
3-2
3
Navigating the Web Browser Interface
To access the web-browser interface you must first enter a user name and
password. The administrator has Read/Write access to all configuration parameters
and statistics. The default user name and password “admin” is used for the
administrator.
Home Page
When your web browser connects with the switch’s web agent, the home page is
displayed as shown below. The home page displays the Main Menu on the left side
of the screen and System Information on the right side. The Main Menu links are
used to navigate to other menus, and display configuration parameters and
statistics.

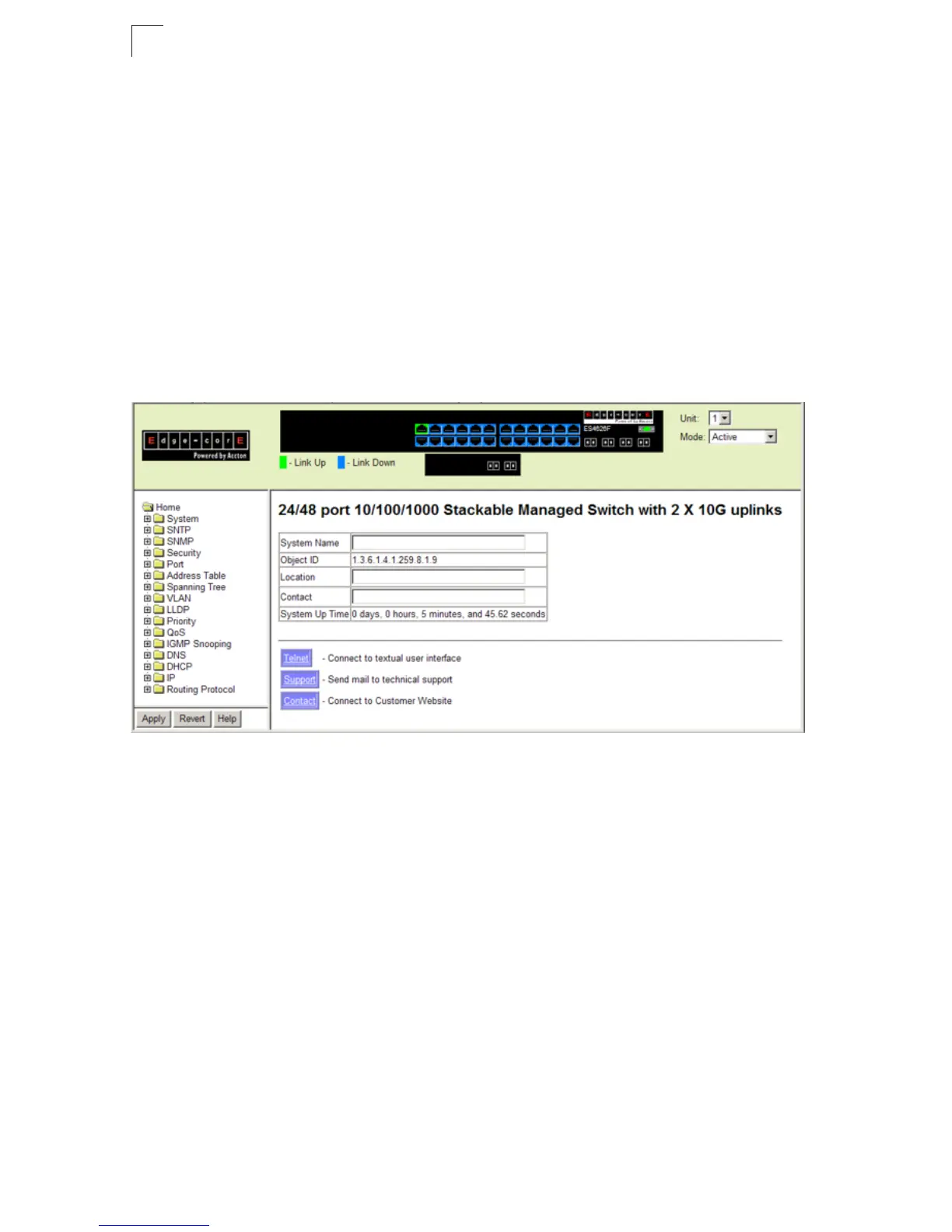

Figure 3-1 Home Page
Note: The examples in this chapter are based on the ES4626F. Other than the number
of fixed ports, there are no other differences between the ES4626F and ES4650F.
The panel graphics for both switch types are shown on the following page.
