IEEE 802.1Q VLANs
11-9
11
CLI – The following example adds tagged and untagged ports to VLAN 2.
Adding Static Members to VLANs (Port Index)
Use the VLAN Static Membership by Port menu to assign VLAN groups to the
selected interface as a tagged member.
Command Attributes
• Interface – Port or trunk identifier.
• Member – VLANs for which the selected interface is a tagged member.
• Non-Member – VLANs for which the selected interface is not a tagged member.
Web – Open VLAN, 802.1Q VLAN, Static Membership by Port. Select an interface
from the scroll-down box (Port or Trunk). Click Query to display membership
information for the interface. Select a VLAN ID, and then click Add to add the
interface as a tagged member, or click Remove to remove the interface. After
configuring VLAN membership for each interface, click Apply.

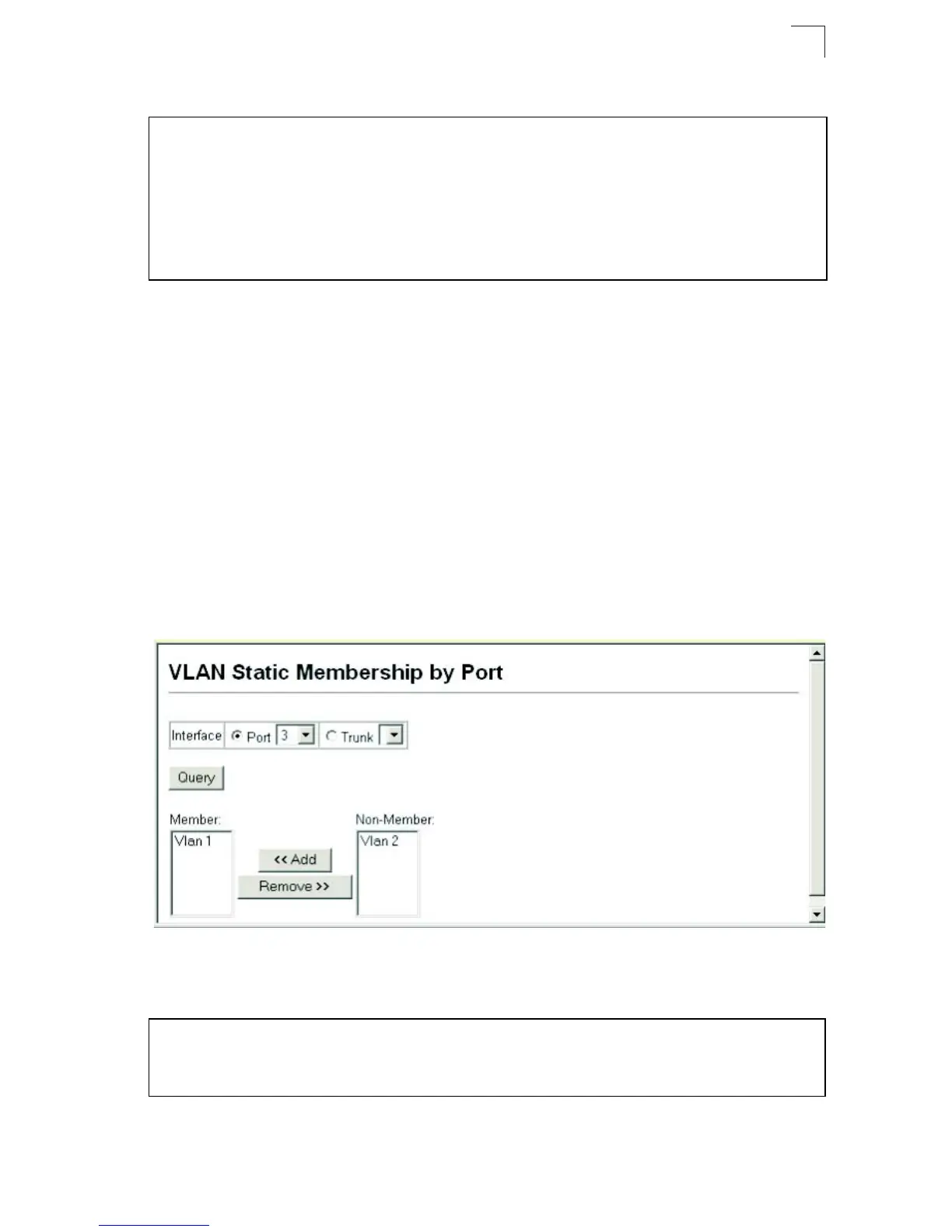

Figure 11-6 VLAN Static Membership by Port
CLI – This example adds Port 3 to VLAN 1 as a tagged port, and removes Port 3
from VLAN 2.
Console(config)#interface ethernet 1/1 27-1
Console(config-if)#switchport allowed vlan add 2 tagged 34-11
Console(config-if)#exit
Console(config)#interface ethernet 1/2
Console(config-if)#switchport allowed vlan add 2 untagged
Console(config-if)#exit
Console(config)#interface ethernet 1/13
Console(config-if)#switchport allowed vlan add 2 tagged
Console(config-if)#
Console(config)#interface ethernet 1/3 27-1
Console(config-if)#switchport allowed vlan add 1 tagged 34-11
Console(config-if)#switchport allowed vlan remove 2
Console(config-if)#
