Configuring the Open Shortest Path First Protocol

20-39

Web - Click Routing Protocol, OSPF, Link State Database Information. Specify

parameters for the LSAs you want to display, then click Query.

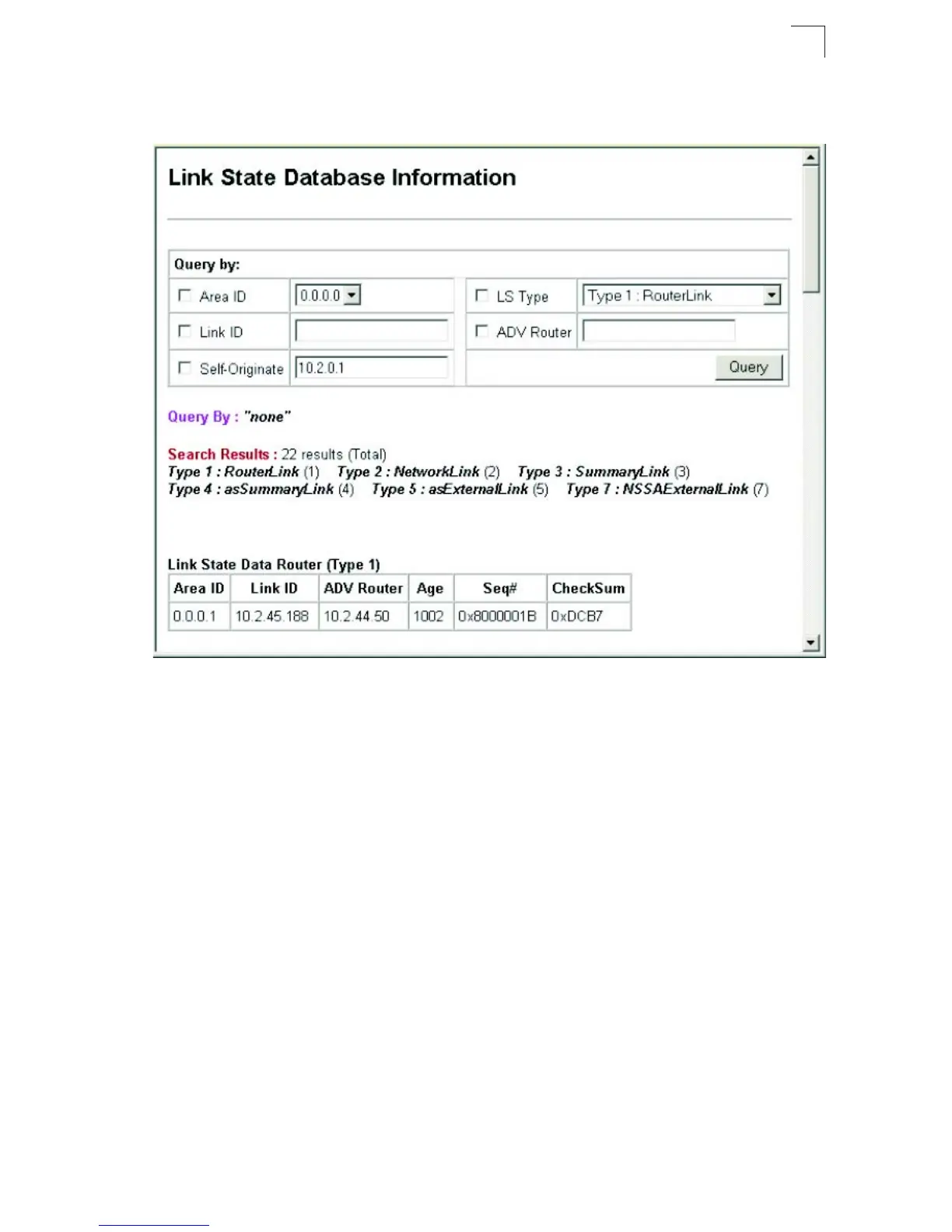

Figure 20-16 OSPF Link State Database Information

CLI - The CLI provides a wider selection of display options for viewing the Link State

Database. See “show ip ospf database” on page 42-41.
