Straightness

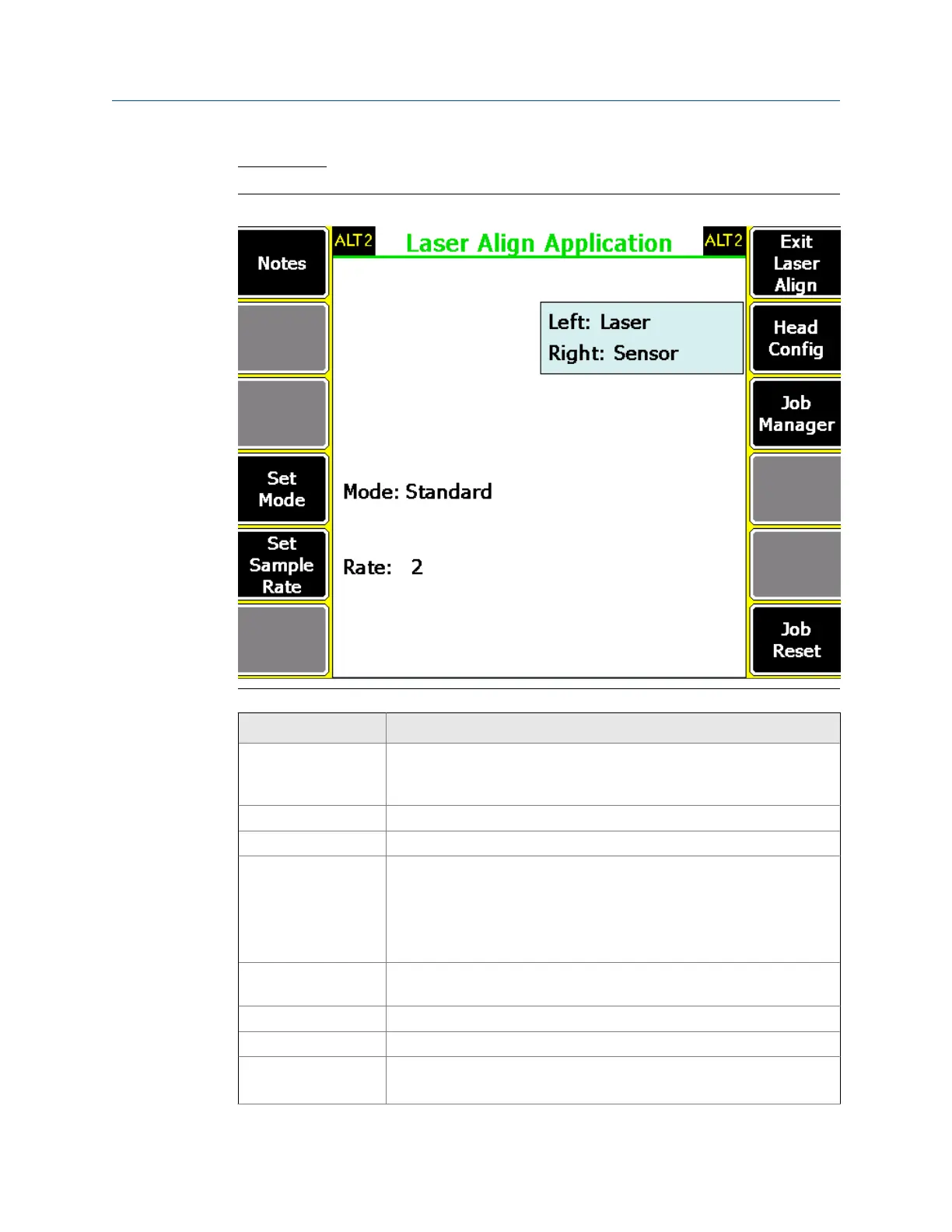

ALT2 keys - straightnessFigure 7-5:
Option Description
F1 Notes Create, add, or remove notes from an alignment job or the analyzer.
Notes are saved with the job to help you remember important
information about a machine.
F2 Intentionally blank.
F3 Intentionally blank.
F4 Set Mode Select Standard or Averaging mode of operation.
Standard is most often used for acquiring straightness data.
In Standard mode, the current reading is obtained directly from the laser
fixtures. In Averaging mode, multiple data sets are sampled to reduce the
noise by averaging the acquired readings.
F5 Set Sample Rate Set the number of samples to average to generate a single reading. You
can choose from 1-25 samples. 2 is the default.
F6 Intentionally blank.
F7 Exit Laser Align Exit the Laser Align Application and return to the home screen.
F8 Head Config Specify or view the placement of the laser and sensor.
This is also where you can check the status of the laser and sensor.
Advanced Laser Alignment
170 MHM-97432 Rev 7
