Machine

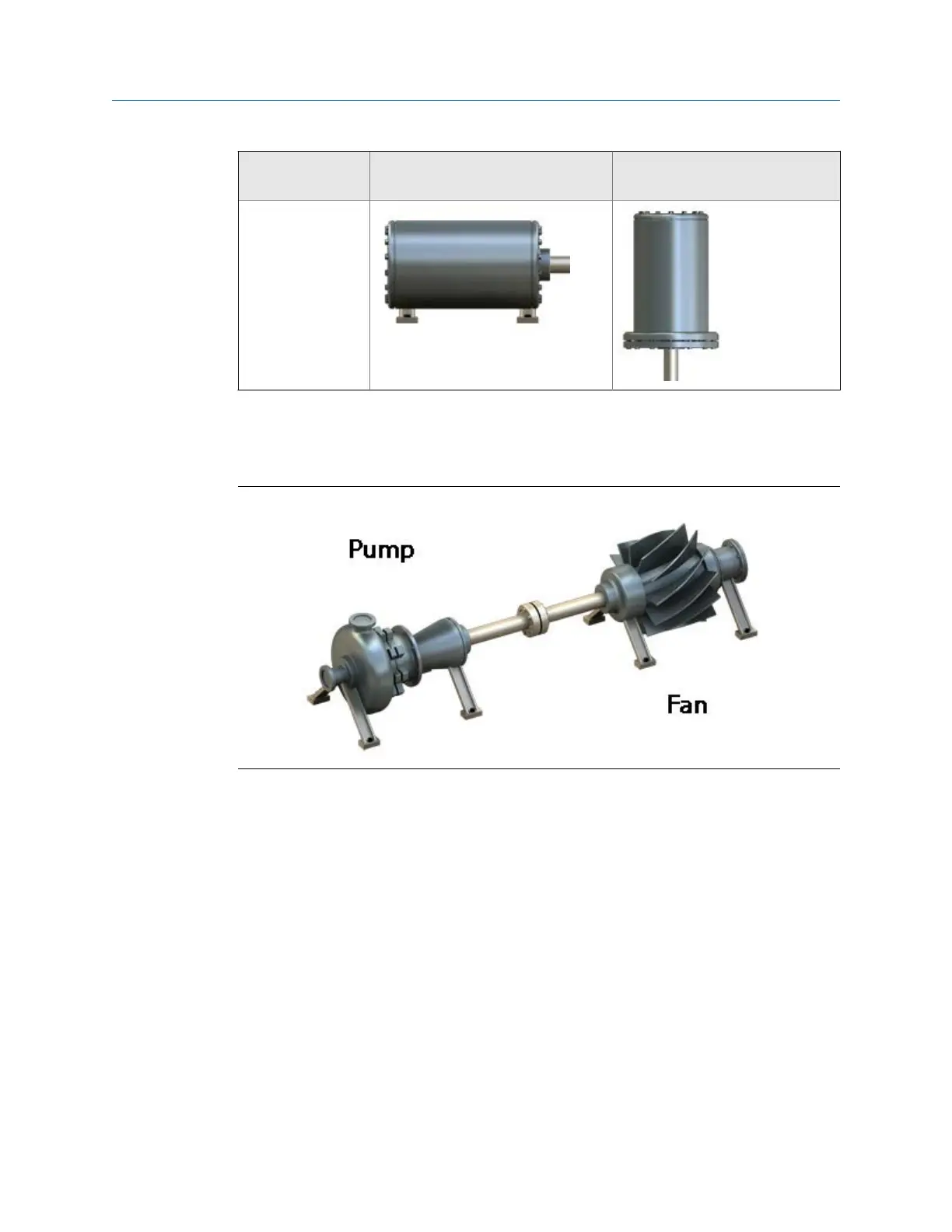

component Image (horizontal) Image (vertical)
Other
For horizontal alignment jobs, change the machine to 2D or isometric machine view by
pressing F8 Change Machine Config on the Machine Configuration screen.
3D machine imagesFigure 7-16:
7.4.13 Set the fine and coarse adjustment of laser fixtures
Setting the fine and coarse adjustment is available only for vertical alignment jobs.
This option lets you set the fine and coarse incremental adjustments to be applied to the
angular position of the laser fixtures during data acquisitions and live move.
Procedure
1.
Activate a vertical alignment job.
2. From the Laser Align Application main menu, press ALT > F3 Set Angle Advance.
3. Press F3 Fine Advance to set the fine incremental adjustments in degrees and press
Enter
You can enter 1° to 5°.
4. Press F4 Coarse Advance to set the coarse incremental adjustments in degrees and
press Enter.
Advanced Laser Alignment
MHM-97432 Rev 7 197
