Procedure
1.
After acquiring alignment data, press Enter.
2. Review the alignment measurement results.
The Review Measurements screen shows the offset and angular data, the date and
time the data was acquired, a symbol depicting the alignment method used to
acquire the data, and a checkmark if the data is used in the average calculation at
the bottom of the screen.

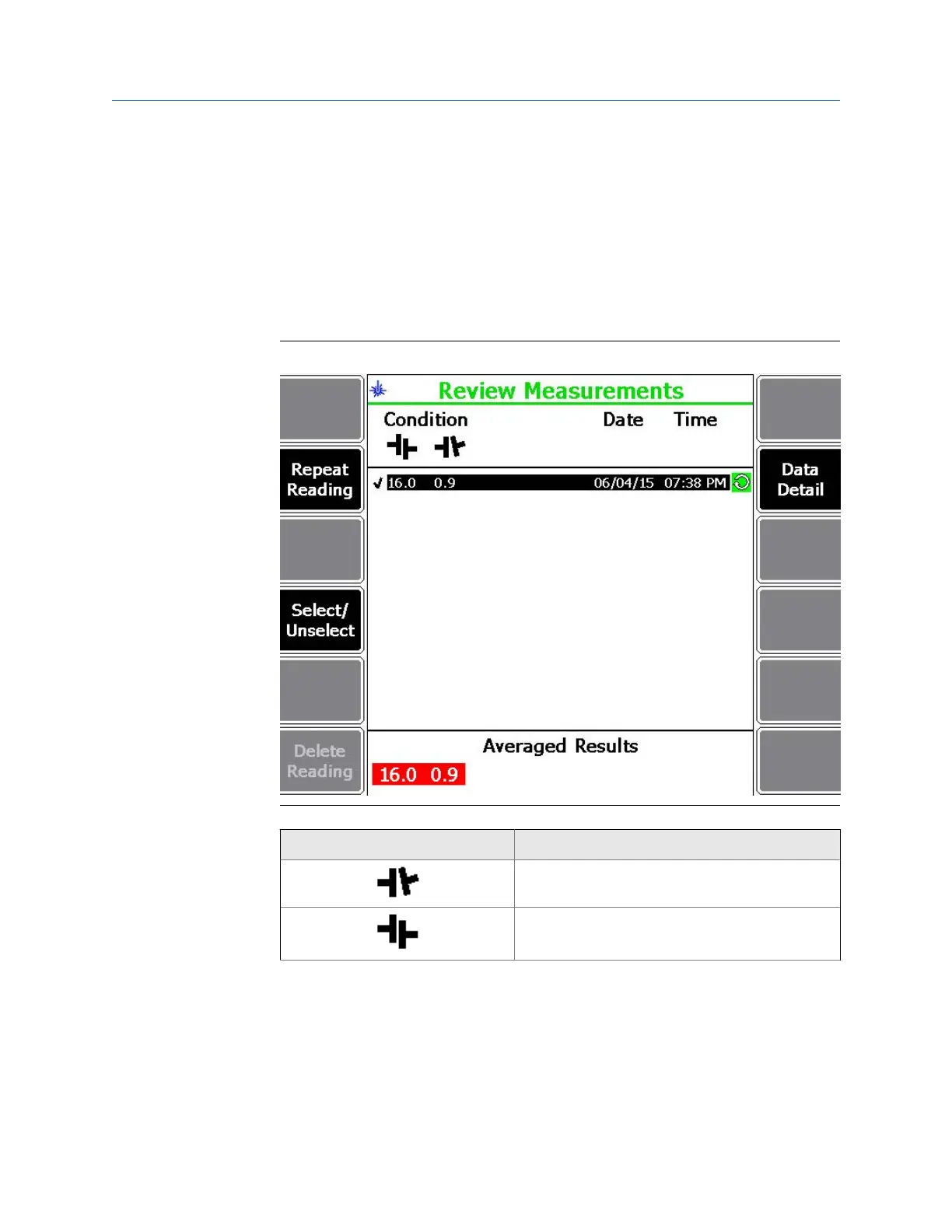

Review Measurements - vertical alignmentFigure 7-39:
Icon Description
The angular alignment condition is shown under this
icon.
The offset alignment condition is shown under this
icon.
Advanced Laser Alignment
236 MHM-97432 Rev 7
