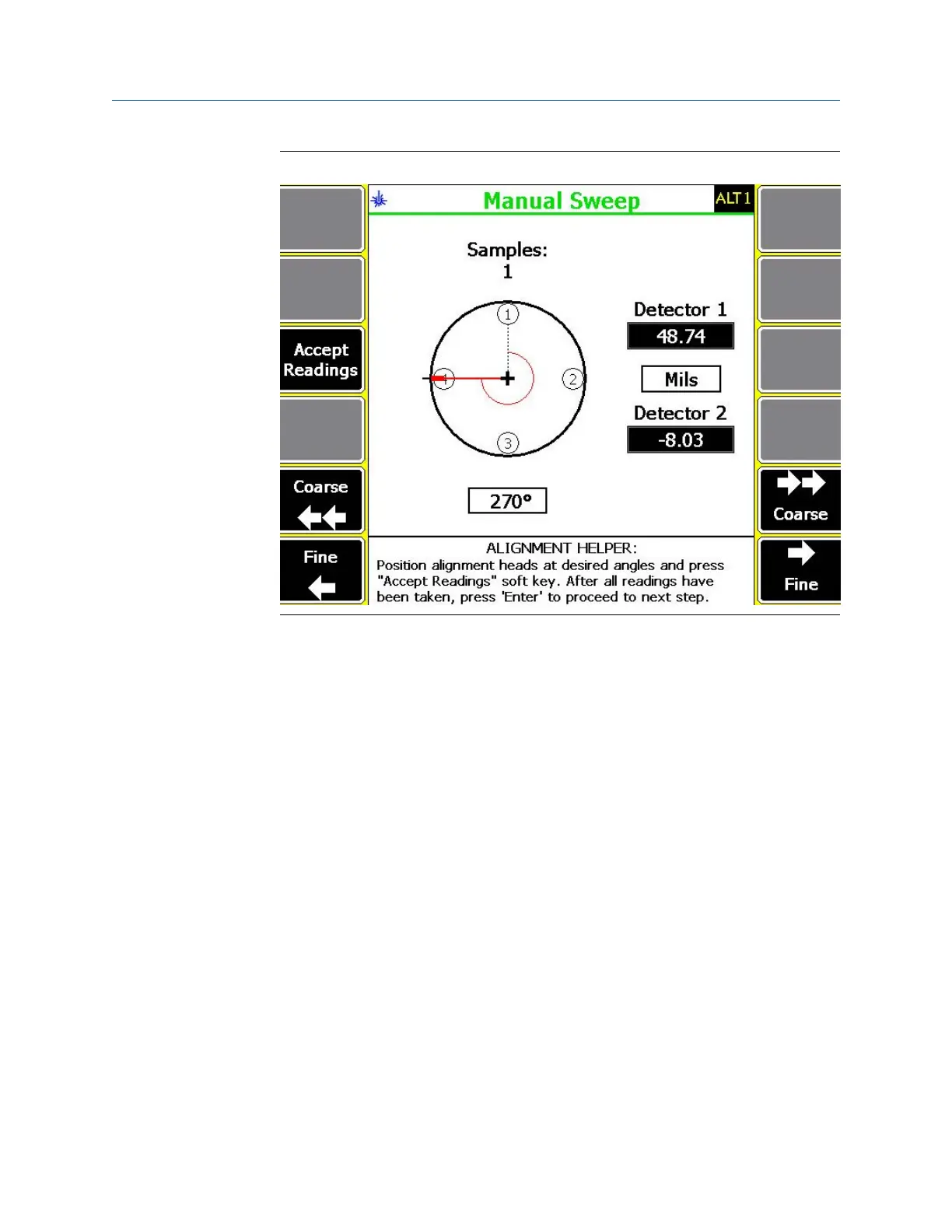

Acquire alignment data - vertical alignmentFigure 7-38:
4. Press Accept Readings to take a reading at the selected point. Each reading is marked
by a data acquisition line on the rectangular or circular flange display and the
number of data samples is increased by one.
5.
Rotate the laser fixtures to the next location where you want to take a reading and
repeat steps 3 and 4.
You can take at least three readings over a rotational arc of 45°. However, Emerson
recommends a minimum of eight data points over a sweep arc of at least 90°.
6. After taking the desired readings, press Enter.
7. If the Review Results option is enabled, review the results, view the tolerance plots,
or repeat the reading.
See Section 7.4.6 for more information on how to enable reviewing of results.
8. Press Enter to advance to the next step (Move Machine).
7.6.5 Review alignment measurement results - vertical
alignment
Reviewing of results is useful when repeatability of the data is a concern.
Prerequisites
Enable reviewing of alignment measurement results. See Section 7.4.6.
Advanced Laser Alignment
MHM-97432 Rev 7 235
