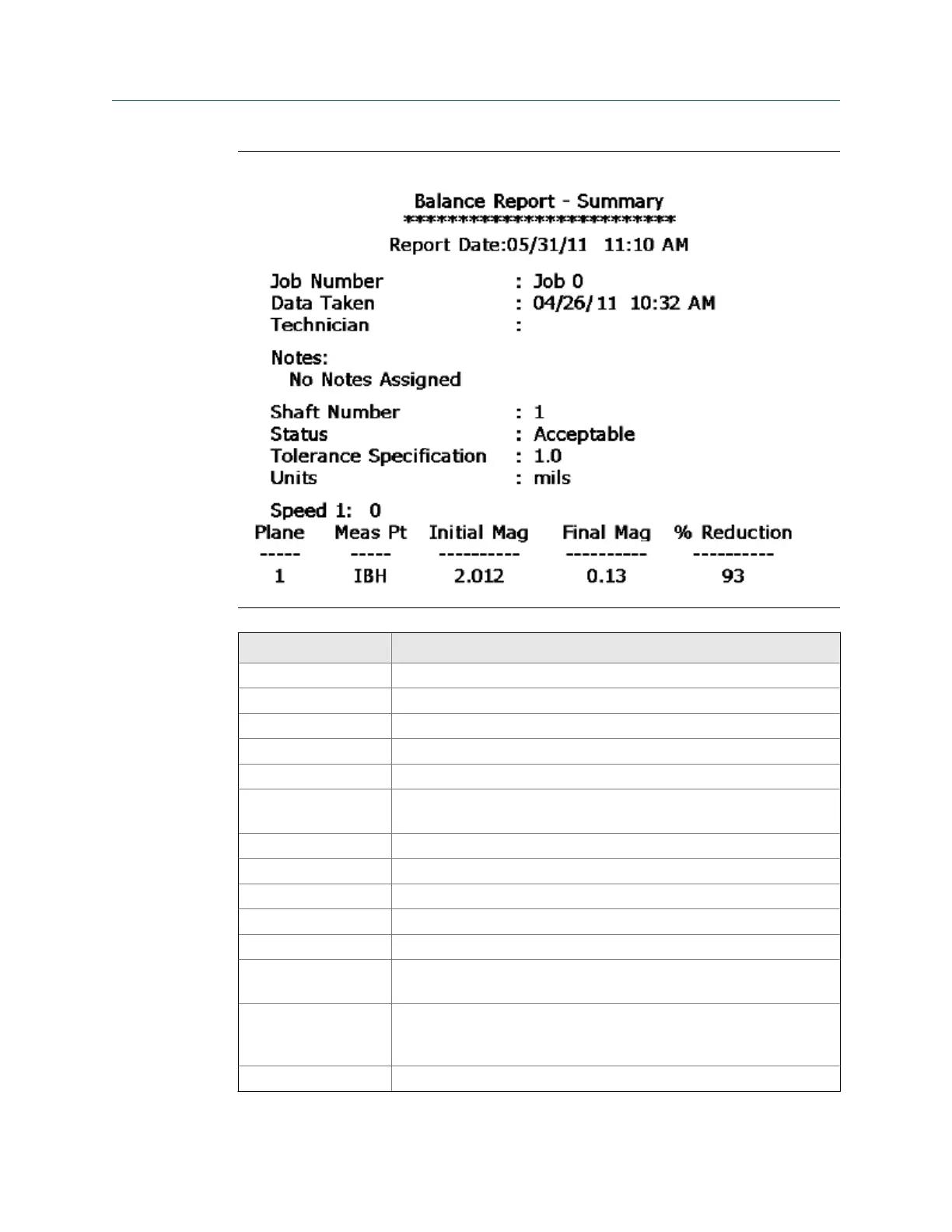

Summary report exampleFigure 10-7:
Option Description
Job Number Job ID set in Job Desc.
Data Taken Date and time you collected the data.
Technician User ID set in Job Desc.
Notes Notes you attached to the job.
Shaft Number Number of shafts defined in Job Desc.
Status The final magnitude and if it is within acceptable limits based on the
balance specification.
Tolerance Specification The balance specification set in Job Setup.
Units The data units set in Job Setup.
Speeds The speed value during data collection.
Plane The number of planes in the job.
Meas Pt The measurement points in the job.
Initial Mag For new balance jobs, the initial magnitude is the reference run data. For
one-run balance jobs, the initial magnitude is the first trim run.
Final Mag For new balance jobs, final magnitude is the last trim run data. For one-
run balance jobs, final magnitude is the last trim run acquired after the
first trim run (initial magnitude).
% Reduction The amount the vibration changed.
Balance
MHM-97432 Rev 7 341
