Programming manual.

CNC 8070

8.

PATH CONTROL.

Circular interpolation (G02/G03).

·148·

(REF: 1709)

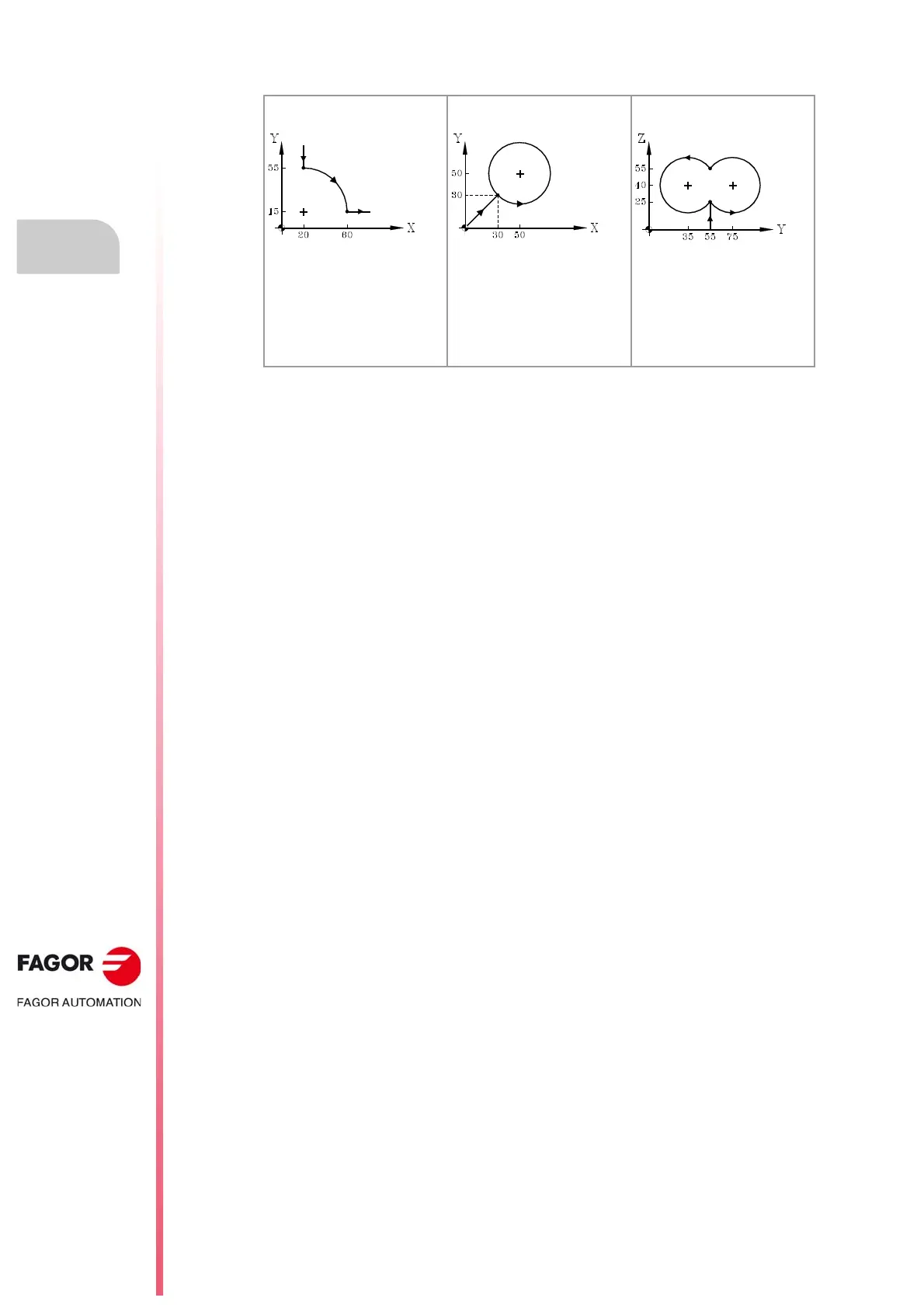

Programming examples.

XY plane (G17)

...

G02 X60 Y15 I0 J-40

...

XY plane (G17)

N10 G17 G71 G94

N20 G01 X30 Y30 F400

N30 G03 X30 Y30 I20 J20

N40 M30

YZ plane (G19)

N10 G19 G71 G94

N20 G00 Y55 Z0

N30 G01 Y55 Z25 F400

N40 G03 Z55 J20 K15

N50 Z25 J-20 K-15

N60 M30

XY

XY

YZ
