Fagor 8070 BL - 8.3 Circular Interpolation (G02;G03)

Programming manual.
CNC 8070
PATH CONTROL.
8.
Circular interpolation (G02/G03).
·145·
(REF: 1709)
8.3 Circular interpolation (G02/G03).
Movements programmed for G02 and G03 are executed along a circular tool path at the
programmed feedrate "F" from the current position to the indicated target point. A circular
interpolation can only be executed in the active plane.

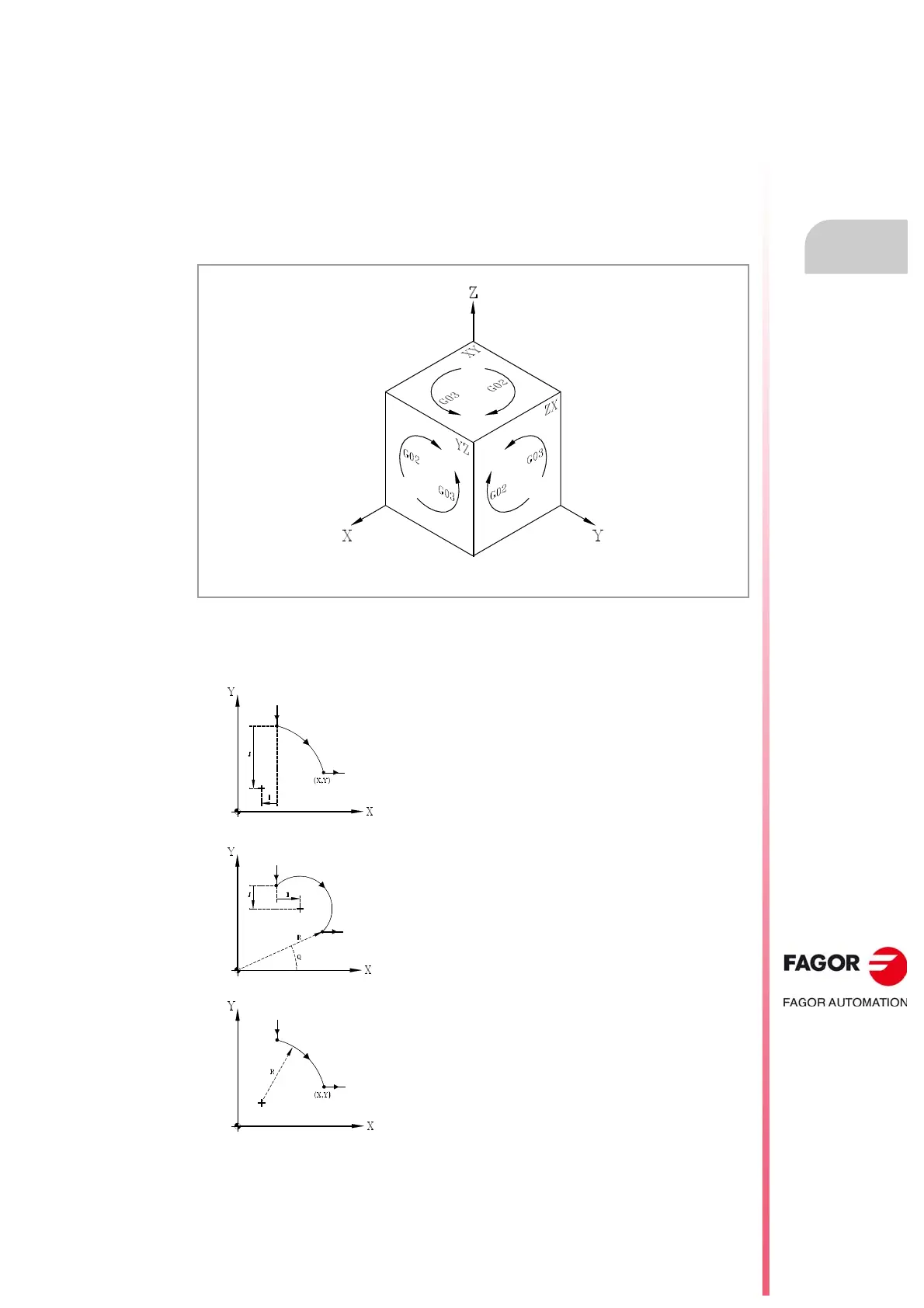

Clockwise (G02) and counterclockwise (G03) moving directions have been established
according to the following coordinate system.
Programming.
G02 Clockwise circular interpolation.
G03 Counterclockwise circular interpolation.
The coordinate system is referred to the movement of the tool on the part.
G02/G03 X Y I J
Cartesian coordinates (Arc center programming).
The arc is defined by programming function G02 or G03
followed by the coordinates of the arc's end point and
those of its center (referred to the starting point of the arc)
according to the axes of the active work plane.
G02/G03 R Q I J
Cartesian coordinates (arc radius programming).
The arc is defined by programming function G02 or G03
followed by the coordinates of the arc's end point and its
radius.
G02/G03 X Y R
Polar coordinates.
The arc is defined by programming function G02 or G03
followed by the coordinates of the arc's end point (radius
and angle) and those of its center (relative to the starting
point of the arc) according to the axes of the active work
plane.
