19.1 Coordinate systems.

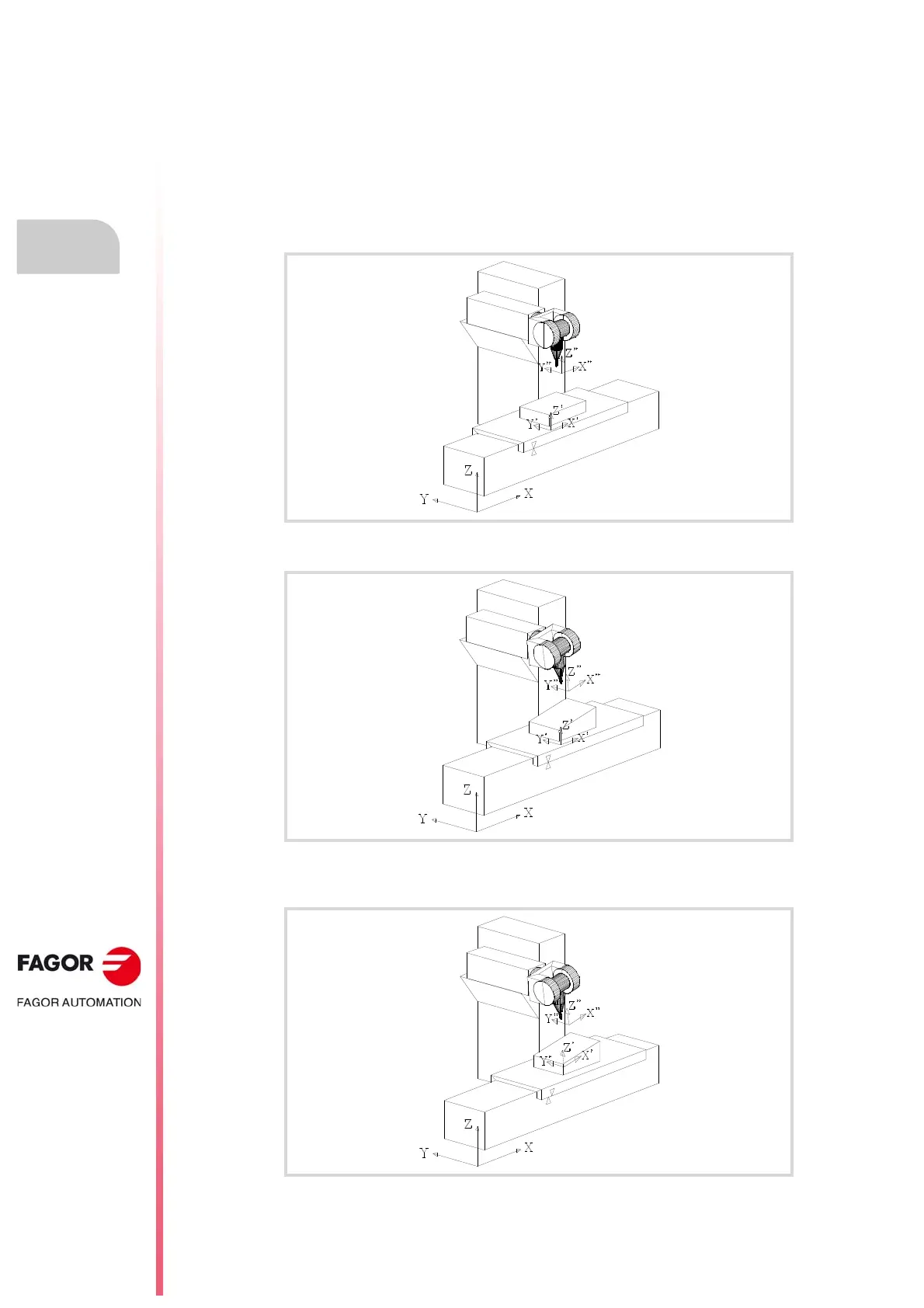

For clarity's sake, the following examples show three coordinate systems:
When no transformation has been made and the spindle is in the starting position, the three
coordinate systems coincide.
When turning the spindle, the tool coordinate system (X" Y" Z") changes.
If besides this, a new machining coordinate system is selected (#CS instruction) or fixture
coordinate system (#ACS instruction) the part coordinate system will also change (X' Y' Z').
X Y Z Machine coordinate system.
X' Y' Z' Part coordinate system.
X" Y" Z" Tool coordinate system.
