Programming manual.

CNC 8070

PATH CONTROL.

Circular interpolation (G02/G03).

·150·

(REF: 1709)

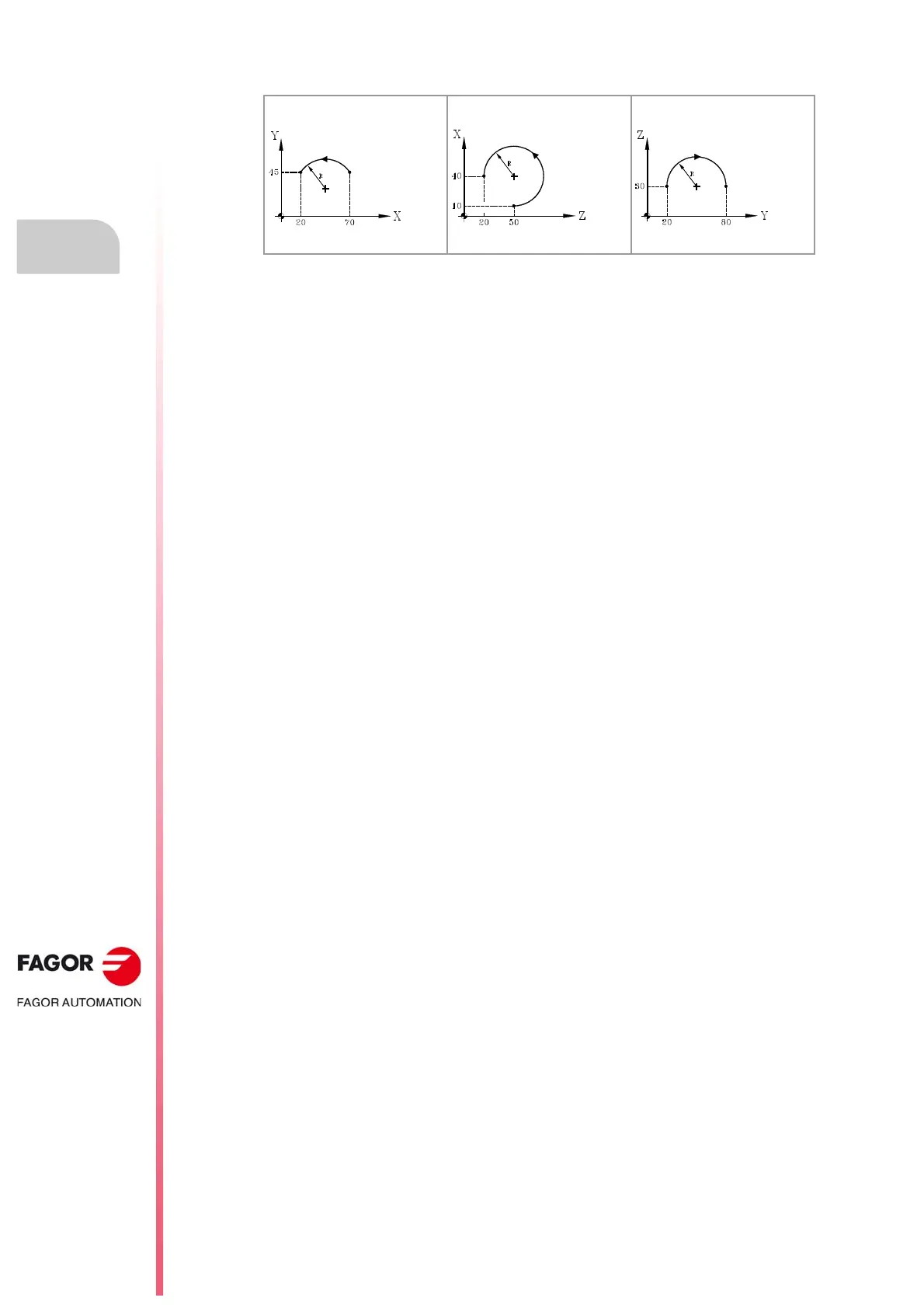

Programming examples.

XY plane (G17)

G03 G17 X20 Y45 R30

ZX plane (G18)

G03 G18 Z20 X40 R-30

YZ plane (G19)

G02 G19 Y80 Z30 R30
